Quick Release Coupling
Technical Specifications
Air information
Air connection thread gender
Male
Air connection thread size (in)
1/2
Air connection thread type
BSP
Max dynamic air working pressure
16 bar
Max air flow
66 l/s
Design & Functions
Coupling profile
Euro 10.4
Product content
Single part
General
Energy type
NA
Family
Connection
Subfamily
Couplings
Power & Battery
Max Ambient Operating Temperature
100 °C
Min Ambient Operating Temperature
-20 °C

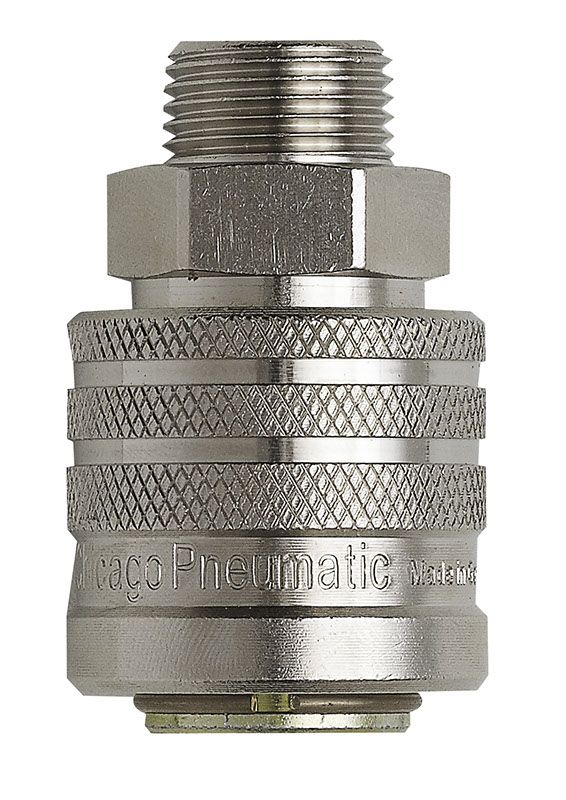

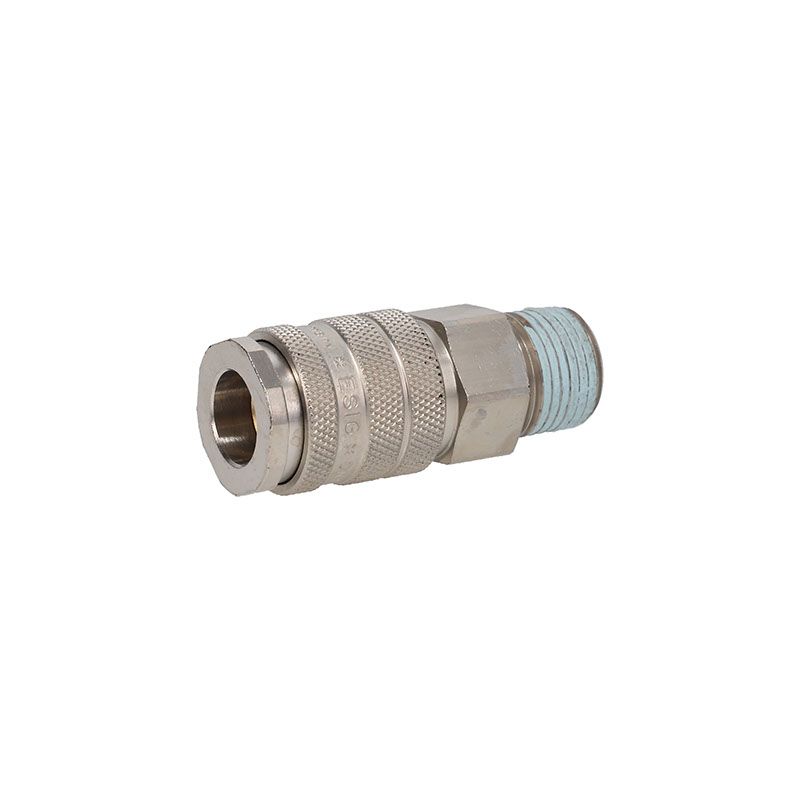

COUPLING QF-M104E 1/2'' BSP
8940176758
Dimensions 6.2 x 2.7 x 2.5 cm
Weight 147 g
