MGN Series - Bottle jacks

The Rodcraft MGM series of hydraulic jack stands includes 11 models from 2 to 50 tons lifting capacity

Country of origin is CN. Customs tariff is 84254200

Family

Jacks

Main Material type

Steel

Max Lifting Capacity

12 ton(s)

Height (H)

120 mm

Length (L)

175 mm

Width (W)

176 mm

Max height with extension

347 mm

Min height

176 mm

Stroke

171 mm

Weight

6.7 kg

MGN 12

8951000013

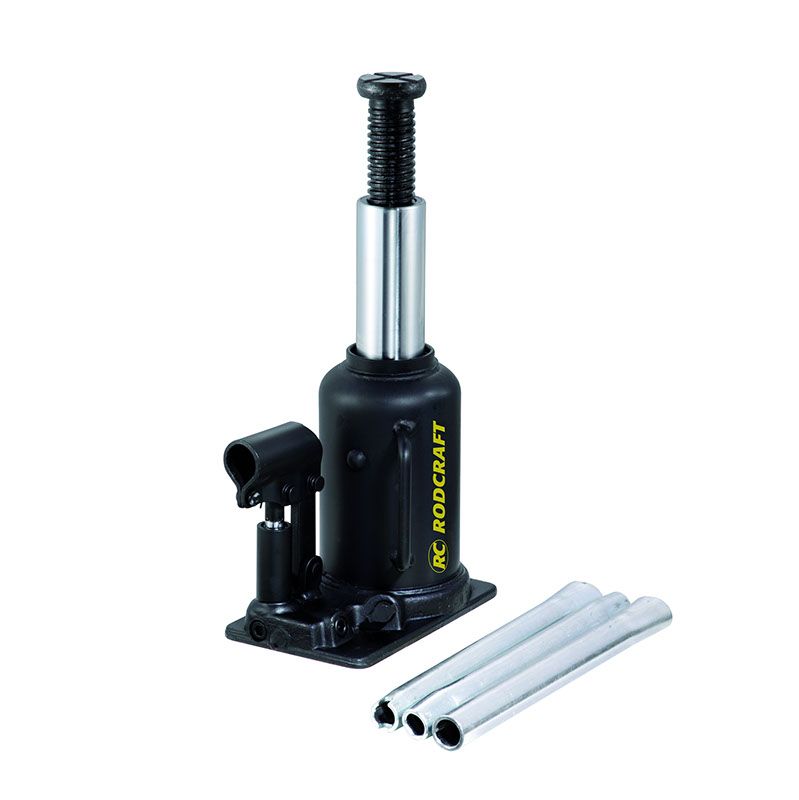

Bottle jack 12 tons - MGN 12

Dimensions 27 x 15 x 20 cm

Weight 7.38 kg

Stable welded construction and high stability thanks to its large base plate

Maximum durability and load capacity thanks to double piston guide

Can be used vertically or horizontally

Adjustable in height depending on the model by thread extension on the piston

Safety valve against overload
