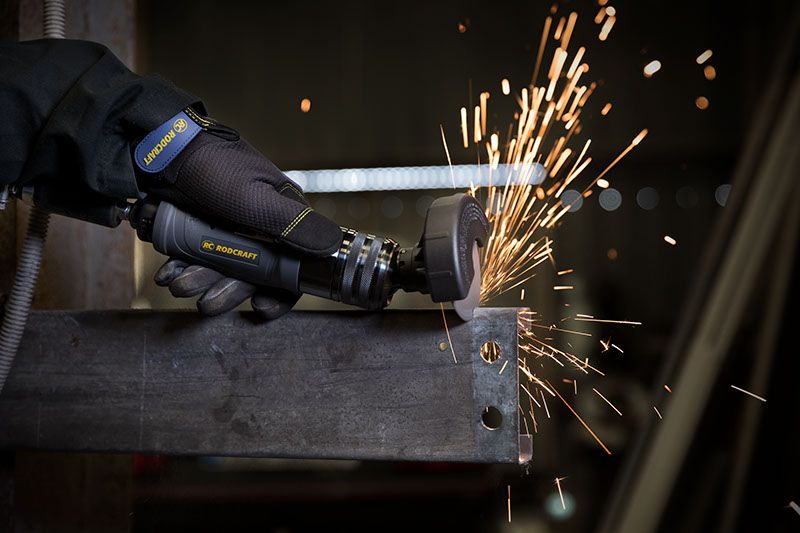

RC7199 – Flexible Head Cut-off Tool

The RC7199 offers the possibility to reach difficult spaces where regular cutting tools cannot fit thanks to its head with a 25° rotation up and down. It includes a spark control on the top side of the housing, speed regulation, a safety lever and composite housing, making the tool safer for the user. Regarding the environment, the grip and guard are made of recycled materials making it eco-friendly. Furthermore, the CO2 emission is lowered compared to all previous cutting tools.

Country of origin is TW. Customs tariff is 84671190

Included Items

1 Flexible Cut-Off Tool

Technical Specifications

Imperial Metric

General

Energy type

Pneumatic

Family

Grinders

Subfamily

Straight Wheel Grinders

Noise & vibrations

Sound Power (dba)

101

Sound Power

101 dB(A)

Sound Pressure

90 dB(A)

Uncertainty vibration-K

0.5 m/s²

Vibration (m/s²)

4.33

Vibration

4.3 m/s²

Air information

Air consumption at load

9.4 l/s

Air inlet thread size (in)

1/4

Air inlet thread type

BSP

Max dynamic air working pressure

6.3 bar

Min hose diam (5 m hose length)

10 mm

Size & Weight

Height (H)

92 mm

Length (L)

248 mm

Width (W)

90 mm

Weight

1.3 kg

Speed

Free Speed

16000 rpm

Air consumption at free speed

11 l/s

Overspeed shut-off

Yes

Design & Functions

Abrasive type

Type 41

Autobalancer

Yes

Exhaust

Rear

Main Material type

Aluminium

Output Spindle Thread

3/8-24 UNF

Rotative guard type

Pull and Turn

Rotative inlet

Yes

Spindle lock

Yes

Starting system

Safety lever

Wheel/Disc diameter (in)

Wheel/Disc diameter (mm)

Wheel thickness (in)

1/16

Wheel thickness (mm)

Power & Battery

Max power

440 W

RC7199

8951000447

Flexible Head Cut-Off Tool - RC7199

Package Dimensions 27.5 x 12.2 x 10 cm

Package Weight 1.7 kg

Related DocumentsSafety Information, Manuals, Technical Drawings, etc.

Benefits

Exceptional ergonomics: Quick lock ring design for fast flex head position change and keyless 360° rotation guard

Outstanding Safety: Spark control on the top side of housing, speed regulation, safety lever and composite housing

Flexibility & Accessibility: Flex head design in 3 positions (straight, 25°up & 25°down) to fit in hard-to-reach spaces

Reduced CO2 emissions: Grip & guard made from recycled materials

Eco-designed packaging: optimized size, weight and printing
