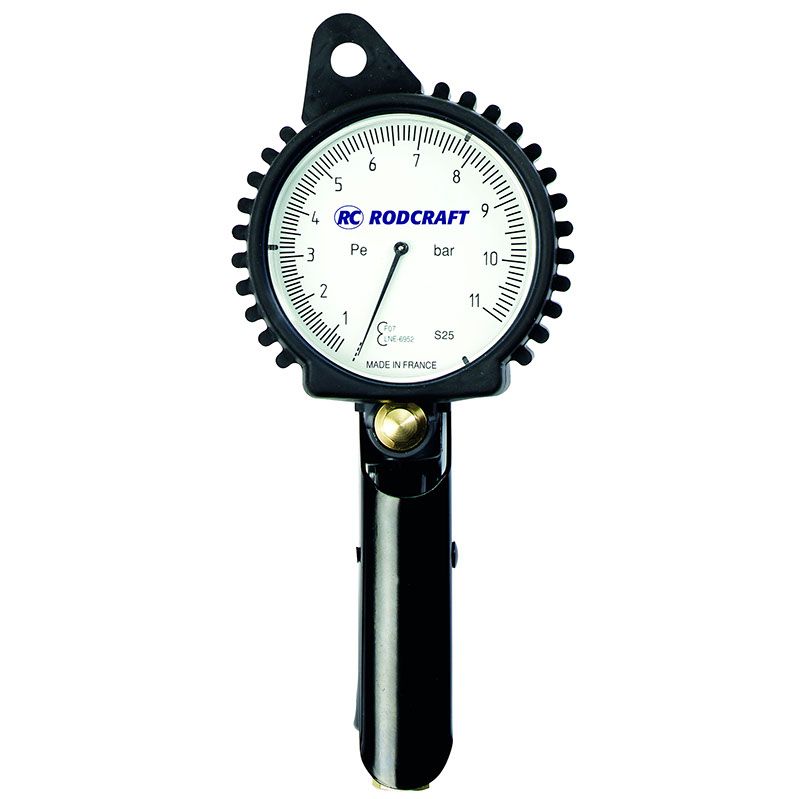

RFP04 - Tyre inflator

The RFP04 tire inflater is suitable for professional use for trucks and cars. It is very stable, shockproof and has an accurate and easy to read pressure gage

Country of origin is FR. Customs tariff is 84818099

Technical Specifications

Imperial Metric

Design & Functions

Calibrated

Yes

Gauge type

Analogue

Main Material type

Aluminium

Nitrogen compatibility

Yes

Nozzle type

Tyre valve clip

Scale resolution

0.1

Starting system

Lever

Speed

Air consumption at free speed

2.7 l/s

Air information

Air inlet thread size (in)

1/4

Air inlet thread type

BSP

Filling hose length

1.5 m

Gauge max air pressure

15 bar

Max dynamic air working pressure

13 bar

Min hose diam (5 m hose length)

8 mm

Size & Weight

Height (H)

165 mm

Length (L)

250 mm

Width (W)

70 mm

170 mm

250 mm

70 mm

Gauge housing diameter

80 mm

Weight

0.65 kg

RFP04G

8951012306

Tyre Filler - RFP04G

Dimensions 25.5 x 16.7 x 7.3 cm

Weight 756 g

THIS PRODUCT IS UNAVAILABLE

This product is out of production or unavailable for purchase.Contact us if you need support on this.

Benefits

Very high inflation or deflation rate even for large tires

1.5 m hose also for attaching to valves that are difficult to access

Calibrated pressure gage with 10 divisions per bar

Shockproof design
