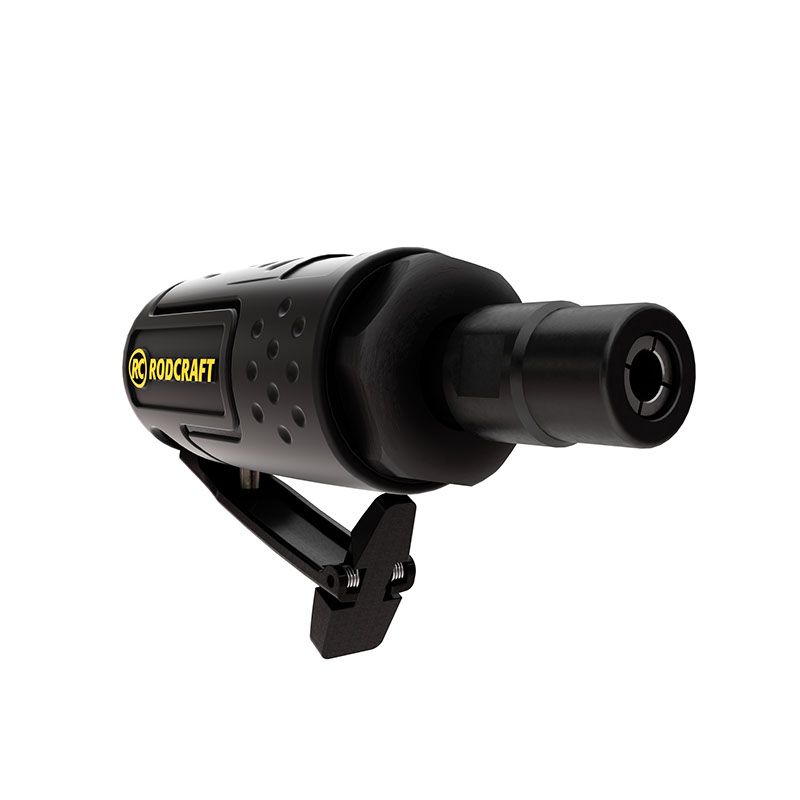

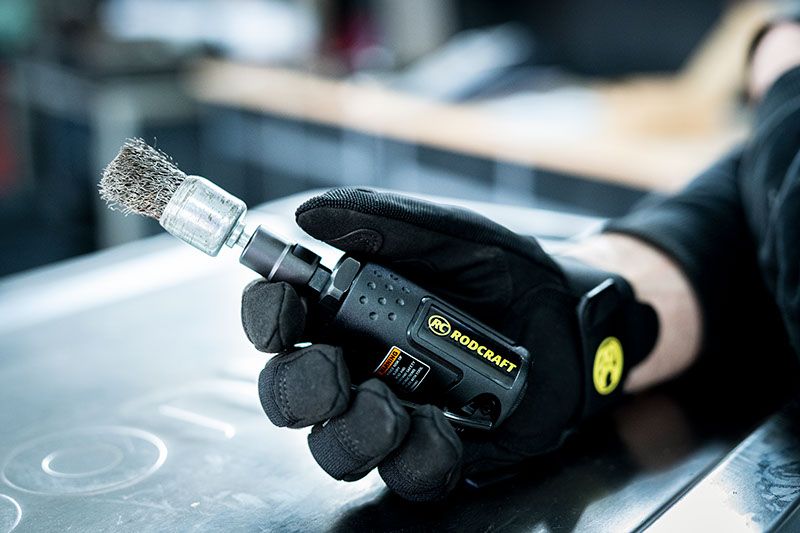

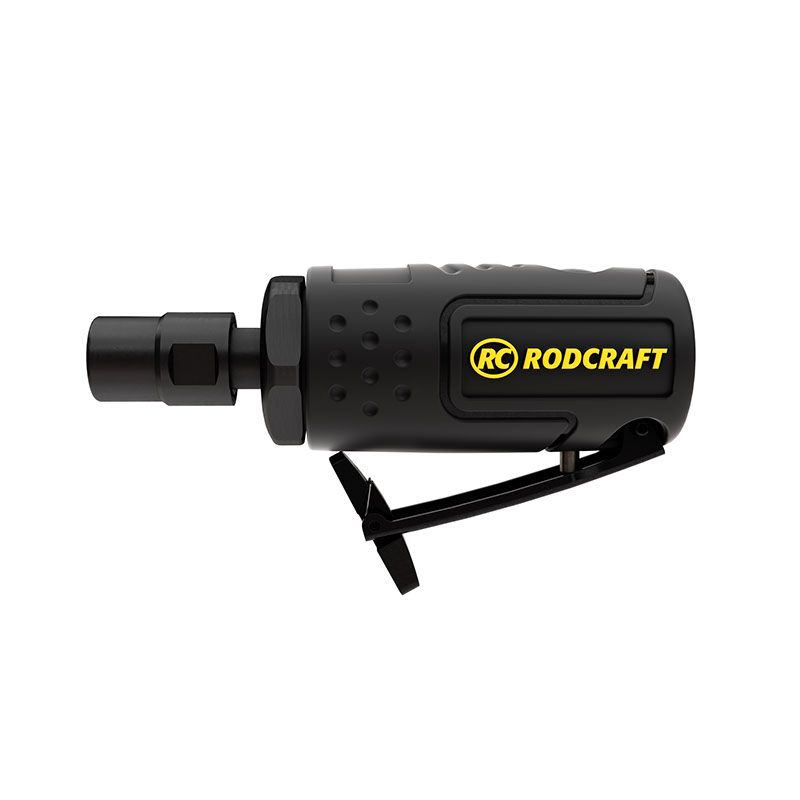

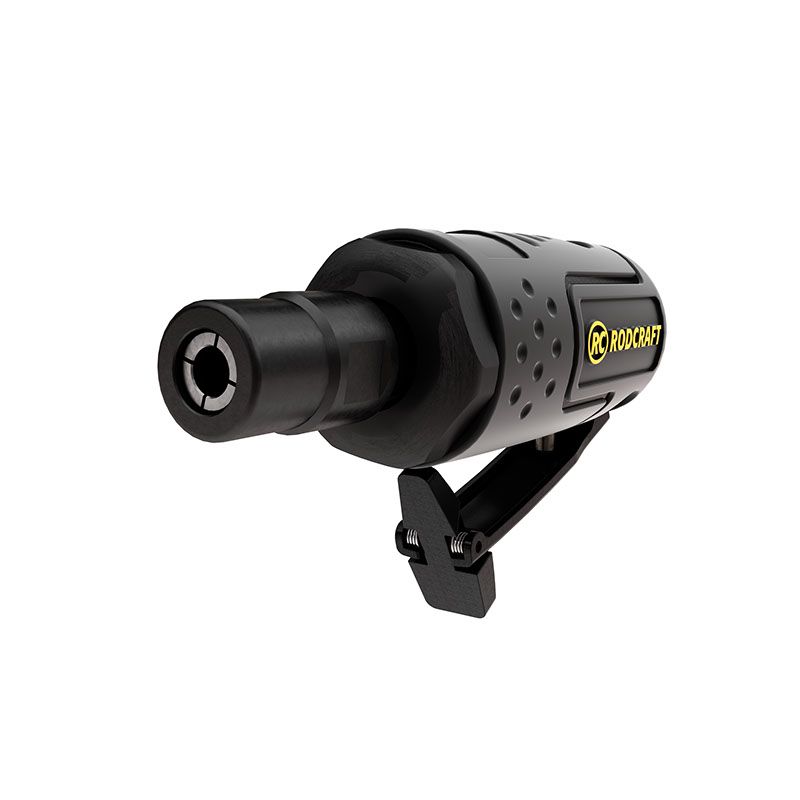

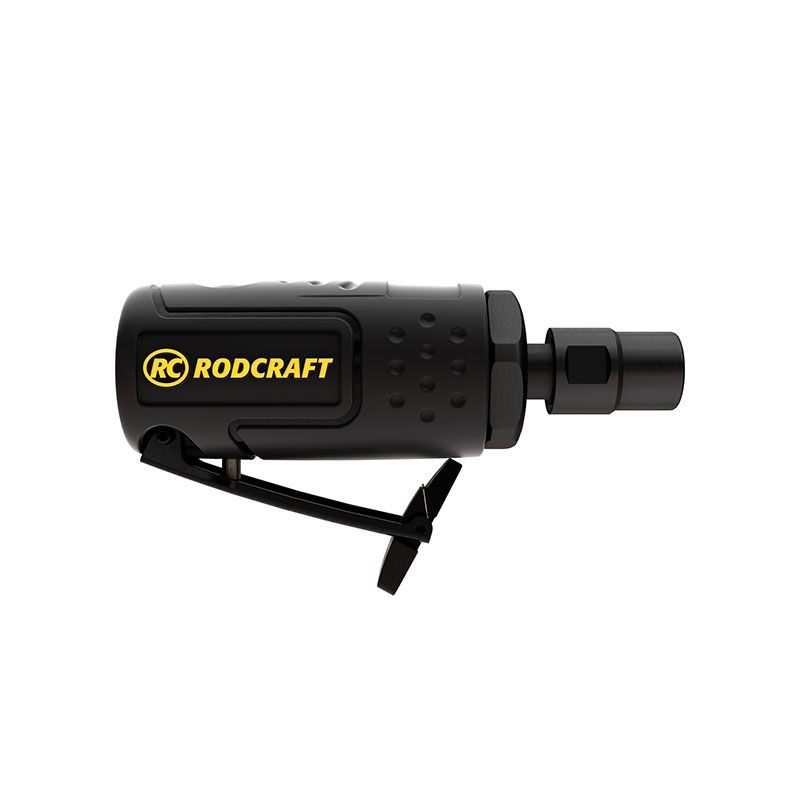

RC7001 / RC7102 - Mini die grinder Series

The RC7001 and RC7102 are the perfect and powerful mini compressed air sanders for working in tight spaces

Country of origin is TW. Customs tariff is 84671110

Technical Specifications

Imperial Metric

Tightening Strategies

Angle Type

Straight

Design & Functions

Collet max capacity

1/4 (6.4mm)

Exhaust

Rear

Main Material type

Composite

Rotative inlet

Spindle lock

Starting system

Safety lever

Noise & vibrations

Sound Power

92 dB(A)

Sound Pressure

81 dB(A)

Uncertainty vibration-K

2.6 m/s²

Vibration

4.2 m/s²

Size & Weight

Height (H)

37 mm

Length (L)

116 mm

Width (W)

66 mm

Weight

0.43 kg

Air information

Air inlet thread size (in)

1/4

Air inlet thread type

BSP

Max dynamic air working pressure

6.3 bar

Min hose diam (16 ft hose length)

0.38 in

Min hose diam (5 m hose length)

10 mm

Power

Max power

223 W

Speed

Free Speed

25000 rpm

Air consumption at free speed

100 l/s

RC7001

8951000428

Mini die grinder 6mm - RC7001

Package Dimensions 24 x 8 x 7 cm

Package Weight 648 g

Related DocumentsSafety Information, Manuals, Technical Drawings, etc.

Benefits

Professional and fast work thanks to the powerful 223 watt air pressure motor

Lightweight tool with composite housing in ergonomic design

Fine speed regulation on the trigger

Available as straight bar grinder RC7001 and as grinder RC7102 with angled head

Accessories and Services

	Name	Item #
	RCA1000 MOTOR OIL 1L		RCA1000 MOTOR OIL 1L
	QUICK COUPLING ISO7,2MM SCREW F 3/8'' BSP		QUICK COUPLING ISO7,2MM SCREW F 3/8'' BSP
	QUICK COUPLING ISO7,2MM HOSE 9-10MM		QUICK COUPLING ISO7,2MM HOSE 9-10MM
	F1G WATER SEPARATOR 852005		F1G WATER SEPARATOR 852005
	HOSE CONNECTOR 6MM SCREW M 1/4'' BSP		HOSE CONNECTOR 6MM SCREW M 1/4'' BSP
	HOSE CONNECTOR 9MM SCREW M 1/4'' BSP		HOSE CONNECTOR 9MM SCREW M 1/4'' BSP
	Y QUICK COUPLING ISO7,2 SCREW F 3/8'' BSP		Y QUICK COUPLING ISO7,2 SCREW F 3/8'' BSP
	Y QUICK COUPLING ISO7,2 SCREW F 3/8'' BSP		Y QUICK COUPLING ISO7,2 SCREW F 3/8'' BSP
	SCREWED ADAPTOR M 3/8'' - M 1/4'' BSP		SCREWED ADAPTOR M 3/8'' - M 1/4'' BSP
	SCREWED ADAPTOR M 1/2'' - M 3/8'' BSP		SCREWED ADAPTOR M 1/2'' - M 3/8'' BSP

Showing 10 of 35
