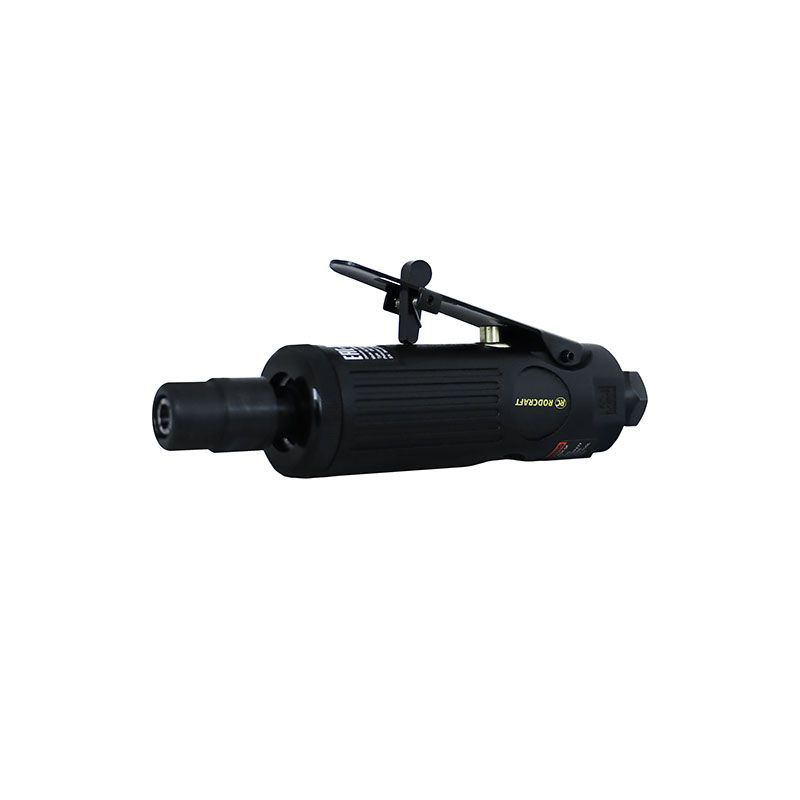

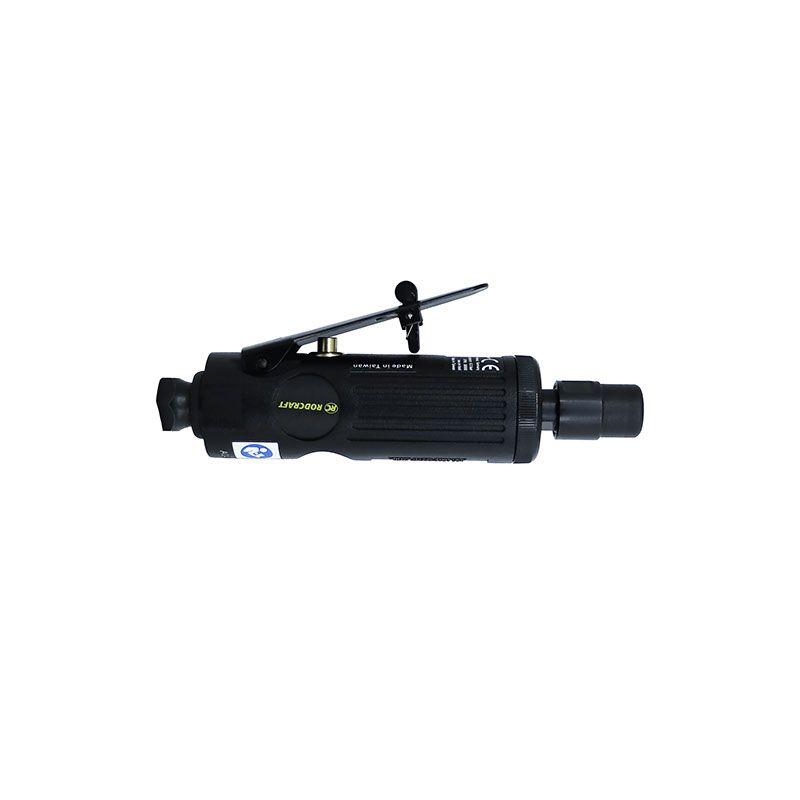

RC7009 - Die grinder

Benefit from this compact grinding machine series with an overall length of only 150 mm. It is designed for general maintenance with its power of 300 watts and variable speed of up to 30,000 rpm.

Country of origin is TW. Customs tariff is 84671110

Technical Specifications

Imperial Metric

Tightening Strategies

Angle Type

Straight

Design & Functions

Collet max capacity

15/64 (6.0mm)

Exhaust

Rear

Main Material type

Steel

Rotative inlet

Spindle lock

Starting system

Safety lever

Noise & vibrations

Sound Power

96.7 dB(A)

Sound Pressure

85.7 dB(A)

Uncertainty vibration-K

0.8 m/s²

Vibration

3.3 m/s²

Size & Weight

Height (H)

34 mm

Length (L)

150 mm

Width (W)

34 mm

Weight

0.37 kg

Air information

Air consumption at load

2.4 l/s

Air inlet thread size (in)

1/4

Air inlet thread type

BSP

Max dynamic air working pressure

6.3 bar

Min hose diam (5 m hose length)

8 mm

Power & Battery

Max power

300 W

Speed

Free Speed

30000 rpm

RC7009

8951000274

Die grinder 6mm - RC7009

Dimensions 20 x 9.8 x 5.3 cm

Weight 551 g

Benefits

Very robust and powerful 300 watt motor with 30,000 rpm for continuous use

Finely adjustable safety trigger

Suitable for 6 mm grinder and cutter

Exhaust air discharge to the rear to avoid chip turbulence

Robust metal housing with non-slip coating

Eco-designed packaging: optimized size, weight and printing
