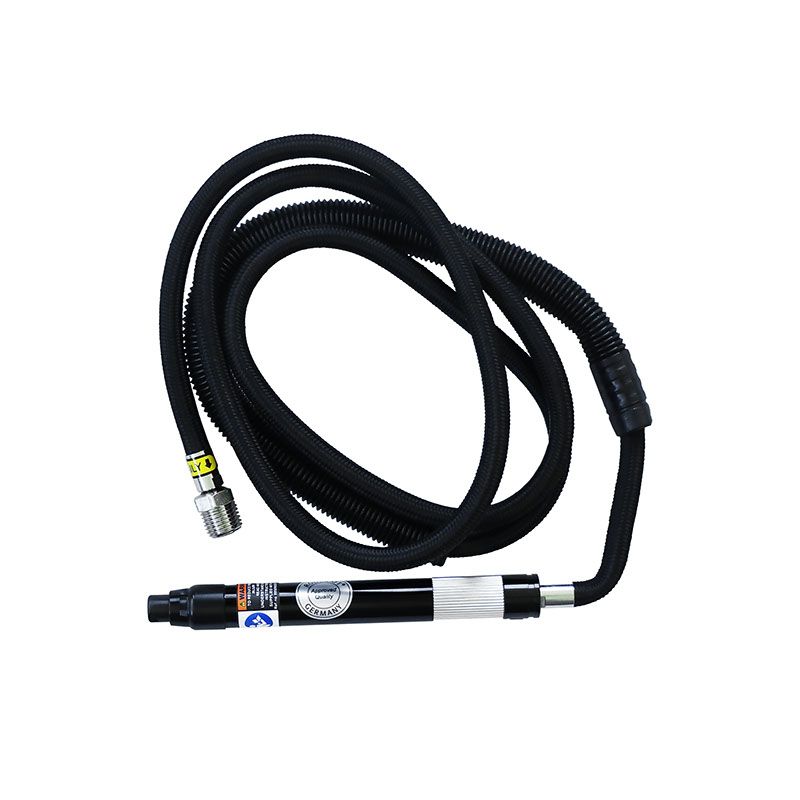

RC7051 - Pencil die grinder

The RC7051 pin grinder is perfect for general maintenance work in tight places and ideal for engraving work or fine milling of grooves and cutouts

Country of origin is TW. Customs tariff is 84671110

Technical Specifications

Imperial Metric

Tightening Strategies

Angle Type

Straight

Design & Functions

Collet max capacity

1/8 (3mm)

Exhaust

Rear

Main Material type

Steel

Rotative inlet

Spindle lock

Starting system

Rolling throttle

Noise & vibrations

Sound Power

82 dB(A)

Sound Pressure

71 dB(A)

Size & Weight

Height (H)

16 mm

Length (L)

138 mm

Width (W)

16 mm

Weight

0.2 kg

Air information

Air inlet thread size (in)

1/4

Air inlet thread type

BSP

Max dynamic air working pressure

6.3 bar

Min hose diam (5 m hose length)

8 mm

Power

Max power

40 W

Speed

Free Speed

60000 rpm

Air consumption at free speed

0.6 l/s

RC7051

8951000165

Die grinder 3mm - RC7051

Package Dimensions 20 x 14.7 x 5.3 cm

Package Weight 383 g

Related DocumentsSafety Information, Manuals, Technical Drawings, etc.

Benefits

Very small and light (0.2 kg) grinder for perfect work in tight places

High speed 60,000 rpm for efficient work

Collet for 3 mm grinder and cutter

Silencer hose included for low noise level of 71 dBa

Packaging: optimized size, weight and printing
