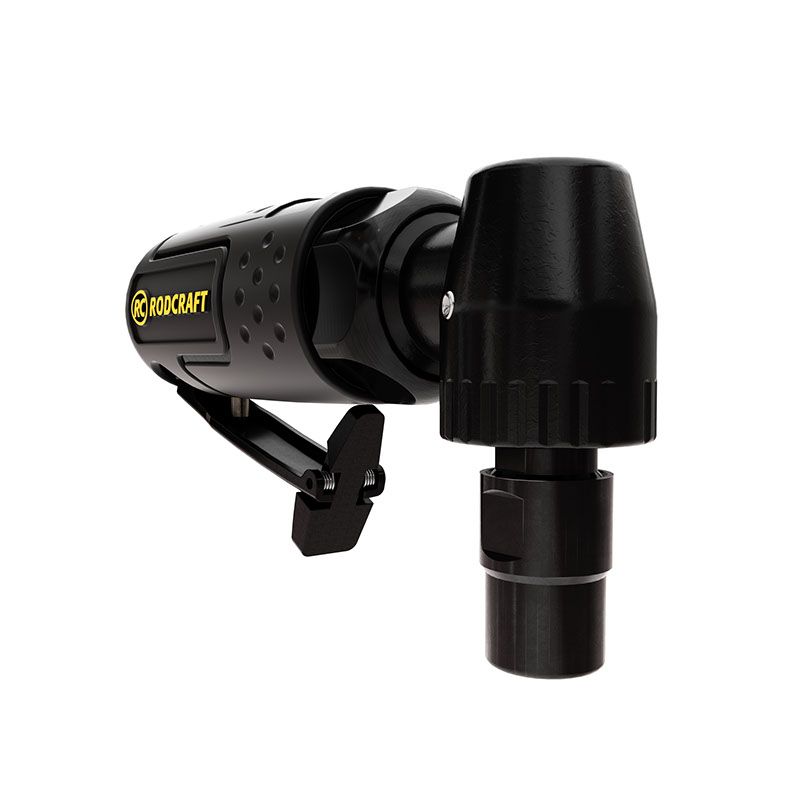

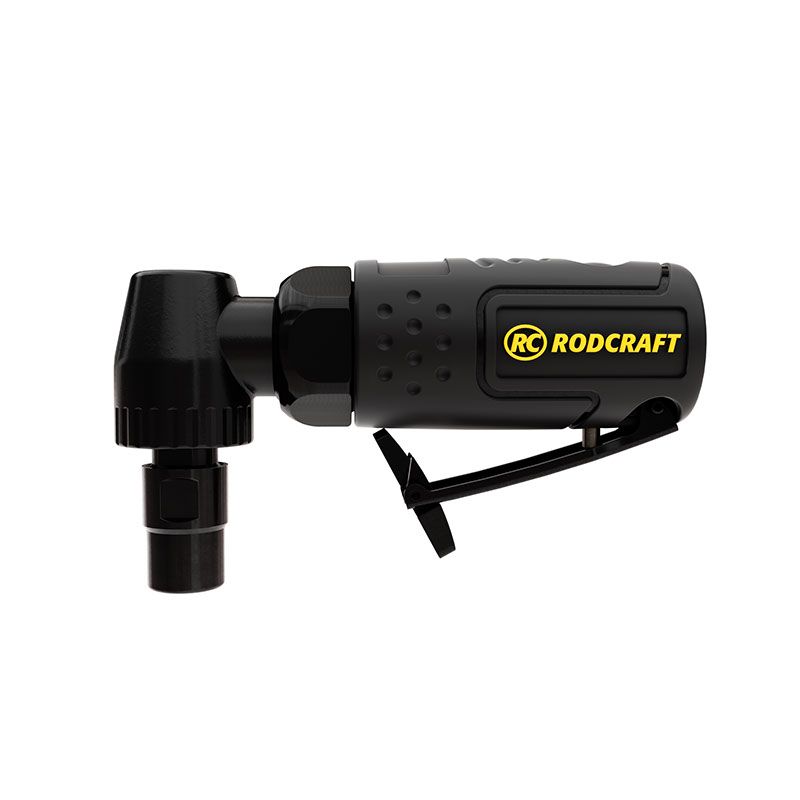

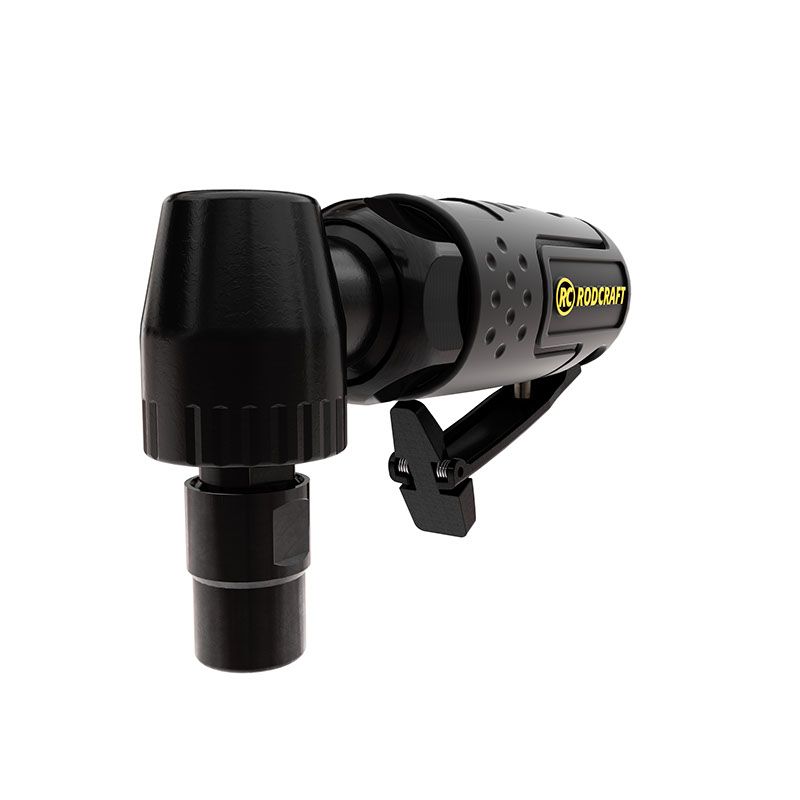

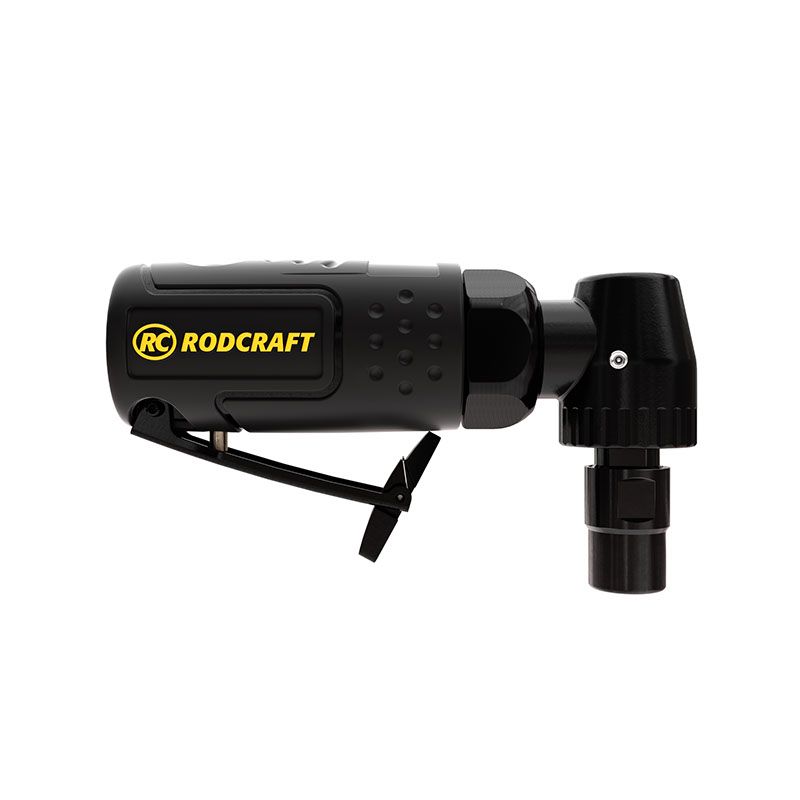

RC7001 / RC7102 - Mini die grinder Series
custom.product.specification.title
Tightening Strategies
Angle Type
90°
Design & Functions
Collet max capacity
1/4 (6.4mm)
Exhaust
Rear
Main Material type
Composite
Rotative inlet
No
Spindle lock
No
Starting system
Safety lever
Noise & vibrations
Sound Power
92 dB(A)
Sound Pressure
81 dB(A)
Uncertainty vibration-K
2 m/s²
Vibration
5 m/s²
Size & Weight
Height (H)
37 mm
Length (L)
126 mm
Width (W)
73 mm
Weight
0.55 kg
Air information
Air inlet thread size (in)
1/4
Air inlet thread type
BSP
Max dynamic air working pressure
6.3 bar
Min hose diam (16 ft hose length)
0.38 in
Min hose diam (5 m hose length)
10 mm
Power
Max power
223 W
Speed
Free Speed
18000 rpm
Air consumption at free speed
1.1 l/s
RC7102
8951000429
custom.dimensions 24.3 x 8.2 x 7 cm
custom.weight 775 g
custom.product.no_longer_available
custom.product.no_longer_sold.textcustom.product.no_longer_sold.contact
custom.product.product_links.accessory_service.title
custom.product.accessories.table.name | custom.product.accessories.table.item | ||||
|---|---|---|---|---|---|
 | QUICK COUPLING ISO7,2MM SCREW F 3/8'' BSP | QUICK COUPLING ISO7,2MM SCREW F 3/8'' BSP | |||
 | QUICK COUPLING ISO7,2MM HOSE 9-10MM | QUICK COUPLING ISO7,2MM HOSE 9-10MM | |||
| F1G WATER SEPARATOR 852005 | F1G WATER SEPARATOR 852005 | |||
| HOSE CONNECTOR 6MM SCREW M 1/4'' BSP | HOSE CONNECTOR 6MM SCREW M 1/4'' BSP | |||
| HOSE CONNECTOR 9MM SCREW M 1/4'' BSP | HOSE CONNECTOR 9MM SCREW M 1/4'' BSP | |||
 | Y QUICK COUPLING ISO7,2 SCREW F 3/8'' BSP | Y QUICK COUPLING ISO7,2 SCREW F 3/8'' BSP | |||
| Y QUICK COUPLING ISO7,2 SCREW F 3/8'' BSP | Y QUICK COUPLING ISO7,2 SCREW F 3/8'' BSP | |||
 | SCREWED ADAPTOR M 3/8'' - M 1/4'' BSP | SCREWED ADAPTOR M 3/8'' - M 1/4'' BSP | |||
 | SCREWED ADAPTOR M 1/2'' - M 3/8'' BSP | SCREWED ADAPTOR M 1/2'' - M 3/8'' BSP | |||
 | SCREWED ADAPTOR M 1/2'' - F 1/4'' BSP | SCREWED ADAPTOR M 1/2'' - F 1/4'' BSP |
custom.product.accessories.showing_items
