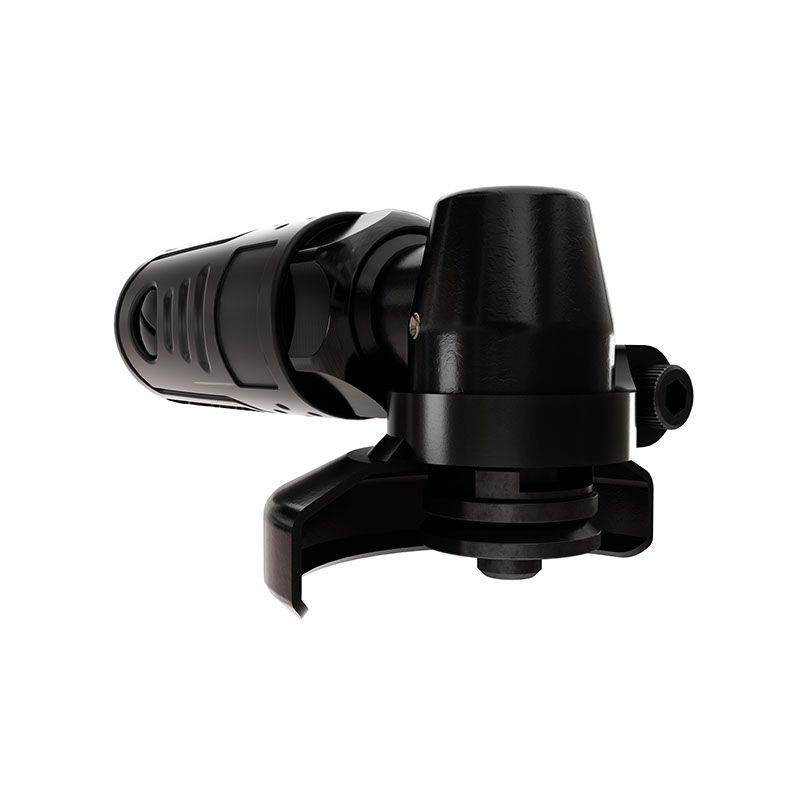

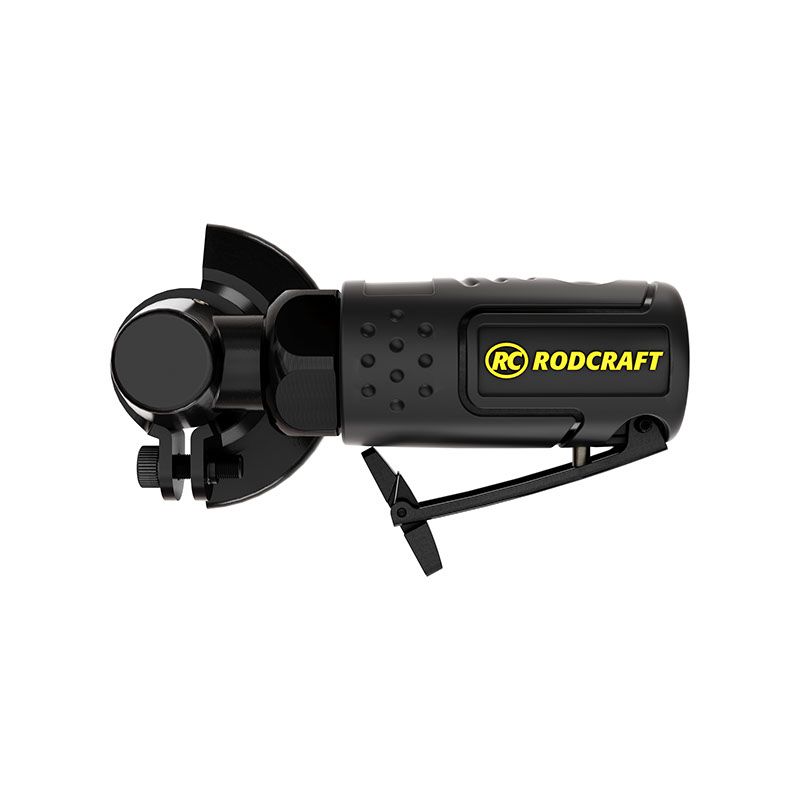

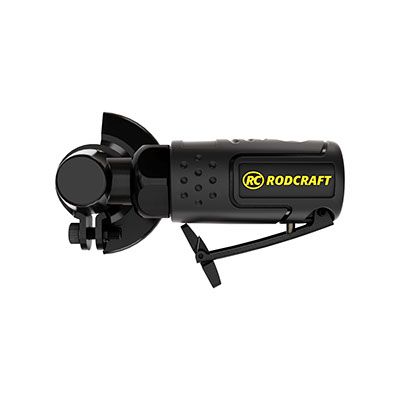

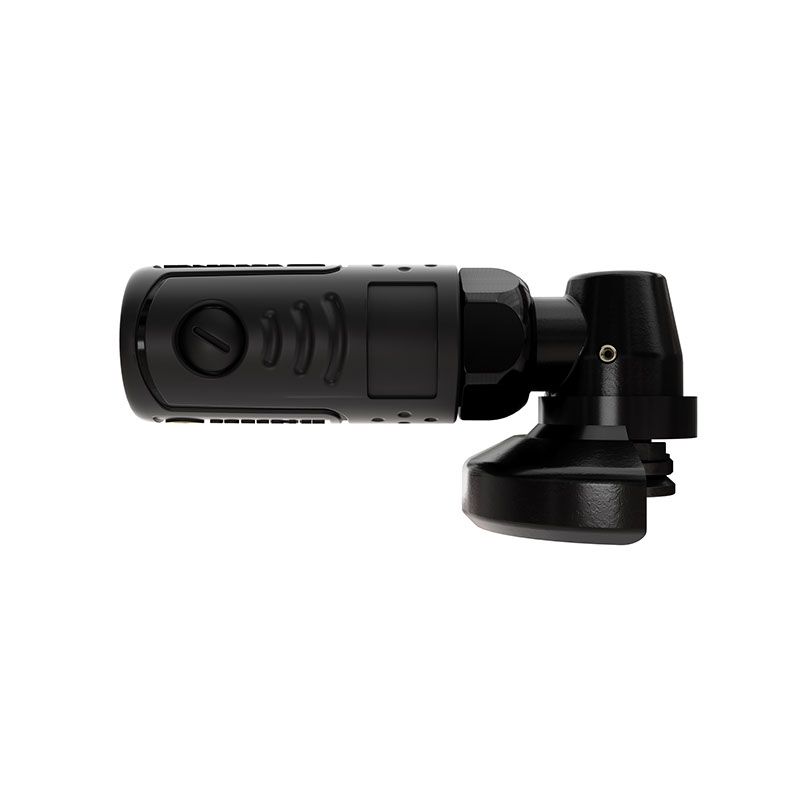

RC7103 - Mini angle grinder

The RC7103 mini compressed air angle grinder is handy, powerful and perfect for working in tight spaces

Country of origin is TW. Customs tariff is 84671110

Technical Specifications

Imperial Metric

Power

Max power

223 W

Noise & vibrations

Sound Power

92.5 dB(A)

Sound Pressure

81.5 dB(A)

Uncertainty vibration-K

2.2 m/s²

Vibration

2.5 m/s²

Air information

Air inlet thread size (in)

1/4

Air inlet thread type

BSP

Max dynamic air working pressure

6.3 bar

Min hose diam (16 ft hose length)

0.38 in

Min hose diam (5 m hose length)

10 mm

Size & Weight

Height (H)

83 mm

Length (L)

129 mm

Width (W)

61 mm

Weight

0.66 kg

Design & Functions

Guard positions

Main Material type

Composite

Output Spindle Thread

3/8-24 UNF

Starting system

Safety lever

Wheel/Disc diameter (in)

2-1/2

Speed

Free Speed

18000 rpm

Air consumption at free speed

1 l/s

RC7103

8951000430

Mini angle grinder 50-59mm - RC7103

Package Dimensions 24 x 8 x 7 cm

Package Weight 800 g

Related DocumentsSafety Information, Manuals, Technical Drawings, etc.

Benefits

Professional and fast work thanks to the powerful 223 watt air pressure motor

Lightweight tool with composite housing in ergonomic design

Fine speed regulation on the trigger

For 50 - 59 mm grinding wheels

Accessories and Services

	Name	Item #
	RCA1000 MOTOR OIL 1L		RCA1000 MOTOR OIL 1L
	QUICK COUPLING ISO7,2MM SCREW F 3/8'' BSP		QUICK COUPLING ISO7,2MM SCREW F 3/8'' BSP
	QUICK COUPLING ISO7,2MM HOSE 9-10MM		QUICK COUPLING ISO7,2MM HOSE 9-10MM
	DOUBLE HOSE CONNECTOR 9MM		DOUBLE HOSE CONNECTOR 9MM
	F1G WATER SEPARATOR 852005		F1G WATER SEPARATOR 852005
	HOSE CONNECTOR 6MM SCREW M 1/4'' BSP		HOSE CONNECTOR 6MM SCREW M 1/4'' BSP
	HOSE CONNECTOR 9MM SCREW M 1/4'' BSP		HOSE CONNECTOR 9MM SCREW M 1/4'' BSP
	HOSE CONNECTOR 9MM SCREW M 3/8'' BSP		HOSE CONNECTOR 9MM SCREW M 3/8'' BSP
	Y QUICK COUPLING ISO7,2 SCREW F 3/8'' BSP		Y QUICK COUPLING ISO7,2 SCREW F 3/8'' BSP
	Y QUICK COUPLING ISO7,2 SCREW F 3/8'' BSP		Y QUICK COUPLING ISO7,2 SCREW F 3/8'' BSP

Showing 10 of 40
