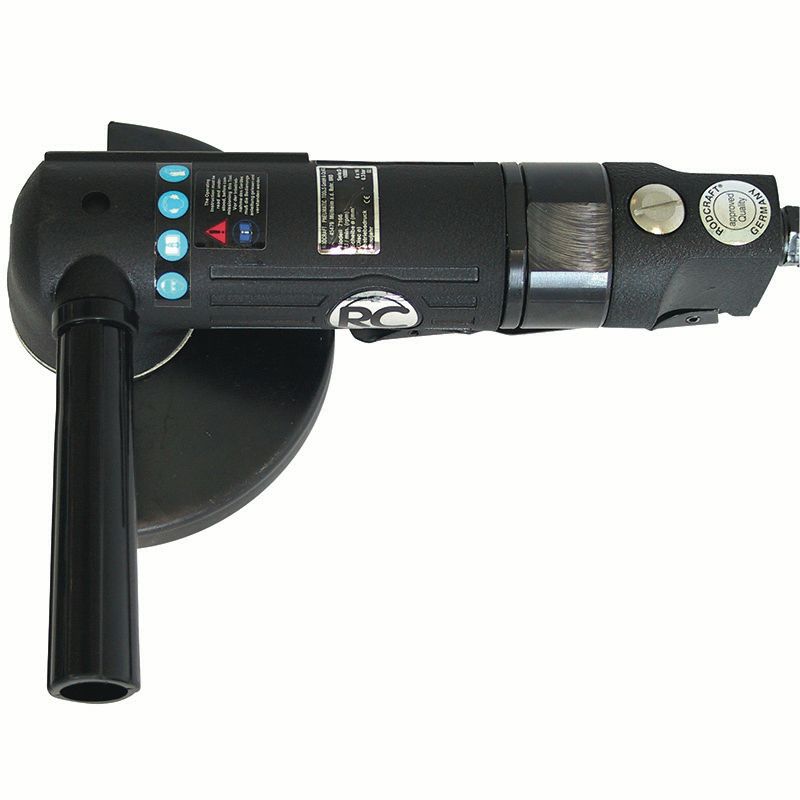

RC7166 - Angle grinder

The robust and powerful RC7166 angle grinder is designed for general maintenance and repair work

Country of origin is TW. Customs tariff is 84671110

Technical Specifications

Imperial Metric

Power

Max power

750 W

Noise & vibrations

Sound Power

96.6 dB(A)

Sound Pressure

85.6 dB(A)

Uncertainty vibration-K

1.1 m/s²

Vibration

5.7 m/s²

Air information

Air consumption at load

1.7 l/s

Air inlet thread size (in)

1/4

Air inlet thread type

BSP

Max dynamic air working pressure

6.3 bar

Min hose diam (5 m hose length)

8 mm

Size & Weight

Height (H)

93 mm

Length (L)

232 mm

Width (W)

47 mm

Weight

1.6 kg

Design & Functions

Autobalancer

Guard max rotation

0 °

Guard positions

Main Material type

Steel

Output Spindle Thread

M14x2

Rotative guard type

Screws

Spindle lock

Starting system

Safety lever

Swiveling guard

Wheel/Disc diameter (in)

4-1/2

Wheel/Disc diameter (mm)

125

Speed

Free Speed

10000 rpm

RC7166

8951075051

Angle grinder 125mm - RC7166

Package Dimensions 24 x 14.5 x 10 cm

Package Weight 2.33 kg

Related DocumentsSafety Information, Manuals, Technical Drawings, etc.

Benefits

Powerful with 750 watts of power and 10,000 rpm

For 115 mm and 125 mm cutting and grinding wheels. With M14 spindle thread and therefore compatible with power tool accessories.

Ergonomic side handle and adjustable guard for additional safety

Robust spur bevel gear design and aluminum housing for long service life

Accessories and Services

	Name	Item #
	RCA1000 MOTOR OIL 1L		RCA1000 MOTOR OIL 1L
	QUICK COUPLING ISO7,2MM SCREW F 3/8'' BSP		QUICK COUPLING ISO7,2MM SCREW F 3/8'' BSP
	QUICK COUPLING ISO7,2MM HOSE 9-10MM		QUICK COUPLING ISO7,2MM HOSE 9-10MM
	DOUBLE HOSE CONNECTOR 9MM		DOUBLE HOSE CONNECTOR 9MM
	F1G WATER SEPARATOR 852005		F1G WATER SEPARATOR 852005
	HOSE CONNECTOR 6MM SCREW M 1/4'' BSP		HOSE CONNECTOR 6MM SCREW M 1/4'' BSP
	HOSE CONNECTOR 9MM SCREW M 1/4'' BSP		HOSE CONNECTOR 9MM SCREW M 1/4'' BSP
	HOSE CONNECTOR 9MM SCREW M 3/8'' BSP		HOSE CONNECTOR 9MM SCREW M 3/8'' BSP
	Y QUICK COUPLING ISO7,2 SCREW F 3/8'' BSP		Y QUICK COUPLING ISO7,2 SCREW F 3/8'' BSP
	Y QUICK COUPLING ISO7,2 SCREW F 3/8'' BSP		Y QUICK COUPLING ISO7,2 SCREW F 3/8'' BSP

Showing 10 of 30
