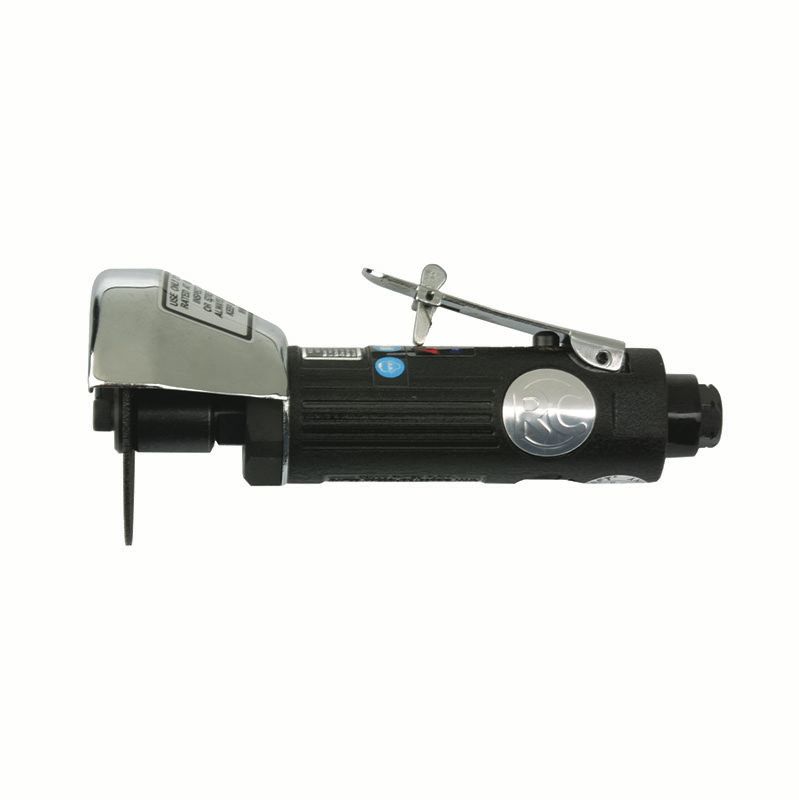

RC7190 - cut-off Tool

The RC7190 is a small and handy cut-off tool and ideal for cutting in places that are difficult to reach, such as exhaust pipes

Country of origin is TW. Customs tariff is 84671110

Technical Specifications

Imperial Metric

Power & Battery

Max power

350 W

Size & Weight

Height (H)

80 mm

Length (L)

195 mm

Width (W)

40 mm

Side to Center

0.8 mm

Weight

0.8 kg

Noise & vibrations

Sound Power (dba)

89.5 dba

Sound Pressure

3.5 dB(A)

Uncertainty vibration-K

0.8 m/s²

Vibration (m/s²)

0.84 m/s**2

Air information

Air consumption at load (Normo)

9.7 1/sNl

Air consumption at load

9.7 l/s

Air inlet thread size (in)

1/4 in

Air inlet thread type

BSP

Max dynamic air working pressure

6.3 bar

Min hose diam (16 ft hose length)

8 in

Design & Functions

Exhaust

Rear

Flexible head

Guard max rotation

360 °

Guard positions

Housing material

Steel

Output Spindle Thread

3/8-24 UNF

Starting system

Safety lever

Wheel/Disc diameter (in)

Wheel/Disc diameter (mm)

Wheel thickness (in)

Wheel thickness (mm)

Speed

Free Speed

20000 rpm

RC7190

8951075101

Angle grinder 70mm - RC7190

Package Dimensions 24.5 x 14.5 x 10 cm

Package Weight 1.12 kg

Related DocumentsSafety Information, Manuals, Technical Drawings, etc.

Benefits

Adjustable speed up to 20,000 rpm

For discs up to 75 mm

High level of safety thanks to an easily adjustable steel wheel guard and a safety release button

Exhaust air discharge to the rear for improved occupational safety

Accessories and Services

	Name	Item #
	RCA1000 MOTOR OIL 1L		RCA1000 MOTOR OIL 1L
	QUICK COUPLING ISO7,2MM SCREW F 3/8'' BSP		QUICK COUPLING ISO7,2MM SCREW F 3/8'' BSP
	QUICK COUPLING ISO7,2MM HOSE 9-10MM		QUICK COUPLING ISO7,2MM HOSE 9-10MM
	DOUBLE HOSE CONNECTOR 9MM		DOUBLE HOSE CONNECTOR 9MM
	F1G WATER SEPARATOR 852005		F1G WATER SEPARATOR 852005
	HOSE CONNECTOR 6MM SCREW M 1/4'' BSP		HOSE CONNECTOR 6MM SCREW M 1/4'' BSP
	HOSE CONNECTOR 9MM SCREW M 1/4'' BSP		HOSE CONNECTOR 9MM SCREW M 1/4'' BSP
	HOSE CONNECTOR 9MM SCREW M 3/8'' BSP		HOSE CONNECTOR 9MM SCREW M 3/8'' BSP
	Y QUICK COUPLING ISO7,2 SCREW F 3/8'' BSP		Y QUICK COUPLING ISO7,2 SCREW F 3/8'' BSP
	Y QUICK COUPLING ISO7,2 SCREW F 3/8'' BSP		Y QUICK COUPLING ISO7,2 SCREW F 3/8'' BSP

Showing 10 of 30
