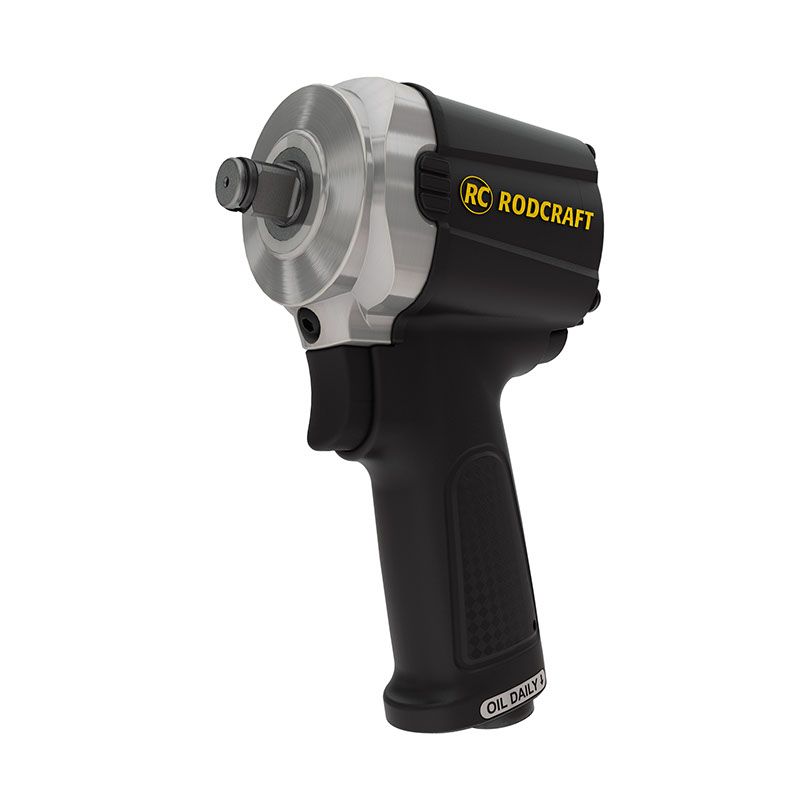

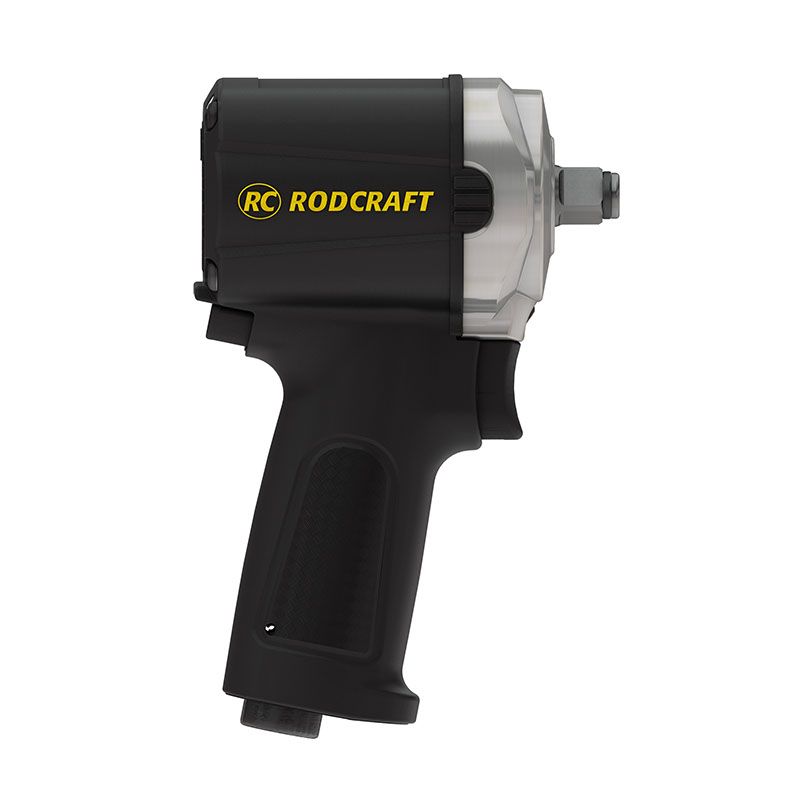

RC2203 - Impact wrench

The RC2203 is a powerful 1/2" impact wrench with a very short, compact design. With a composite body, its light weight and intuitive operation, it is ideal for daily use in tight places.

Country of origin is CN. Customs tariff is 84671190

Technical Specifications

Imperial Metric

Design & Functions

Body

Composite

Clutch housing

Aluminium

Clutch lubrication type

Grease

Handle type

Pistol

Impact mecanism

Twin hammer

Output drive size (in)

1/2

Output drive type

Output retainer type

Friction ring

Side handle

Starting system

Trigger

Noise & vibrations

Sound Power

101 dB(A)

Sound Pressure

90 dB(A)

Uncertainty vibration-K

4.1 m/s²

Vibration

11.2 m/s²

Torque

Max loosening torque

1250 Nm

Max torque reverse

650 Nm

Air information

Air inlet thread size (in)

1/4

Air inlet thread type

BSP

Max dynamic air working pressure

6.3 bar

Min hose diam (5 m hose length)

10 mm

Size & Weight

Height (H)

66 mm

Length (L)

115 mm

Width (W)

180 mm

Weight

1.1 kg

Speed

Free Speed

10500 rpm

Air consumption at free speed

2.5 l/s

RC2203

8951000387

Impact wrench 1/2" - RC2203

Package Dimensions 21 x 14 x 7 cm

Package Weight 1.42 kg

Related DocumentsSafety Information, Manuals, Technical Drawings, etc.

Benefits

High maximum release torque

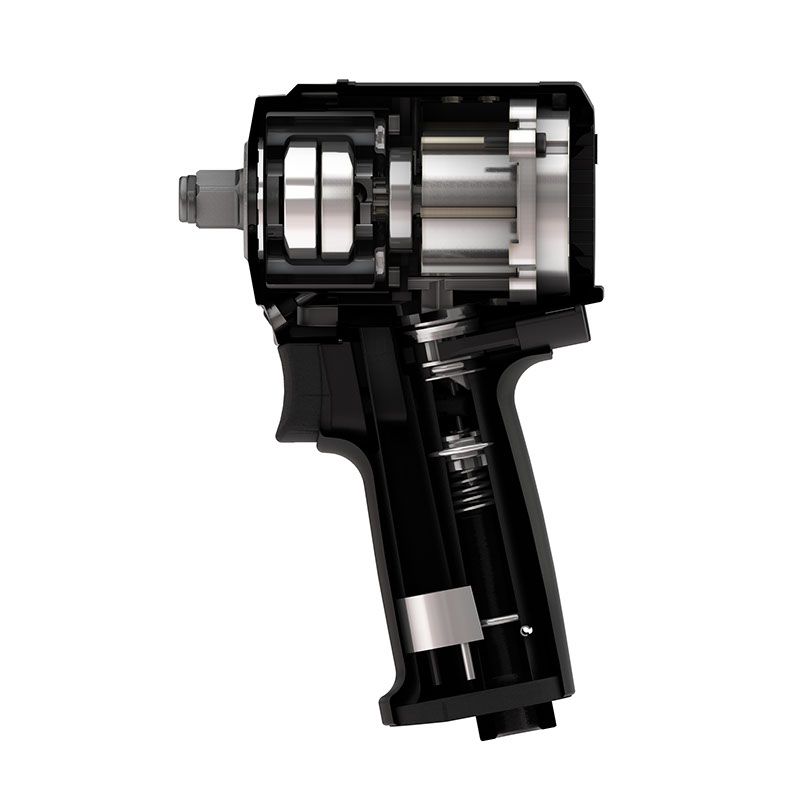

Powerful double hammer impact mechanism with one-handed clockwise and counterclockwise rotation changeover including 3 torque levels in clockwise rotation

Cold insulating composite housing and non-slip rubberized handle for maximum comfort during daily use

Ultra compact with only 90 mm length

Lightweight and ideally balanced for ergonomic work
