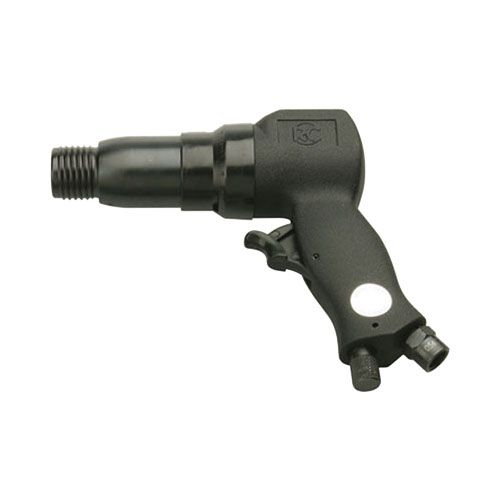

RC5100/RC5120/RC5150 Series - Hammers
Technical Specifications
Air information
Air consumption at load
6.7 l/s
Air inlet thread size (in)
1/4
Air inlet thread type
BSP
Max dynamic air working pressure
6.3 bar
Min hose diam (5 m hose length)
8 mm
Size & Weight
Bore diameter
19 mm
Height (H)
160 mm
Length (L)
200 mm
Width (W)
39 mm
Stroke
60 mm
Weight
1.5 kg
Speed
Air consumption at free speed
3.3 l/s
Design & Functions
Blow per minute
3000
Chisel shank
Hex
Chisel shank diameter (mm)
11
Energy
6 J
Starting system
Trigger
General
Energy type
Pneumatic
Subfamily
Hammers
Noise & vibrations
Sound Pressure
94.8 dB(A)
Uncertainty vibration-K
1.9 m/s²
Vibration
13.2 m/s²
RC5100
8951071022
Dimensions 21.5 x 17.5 x 5.2 cm
Weight 1.75 kg
