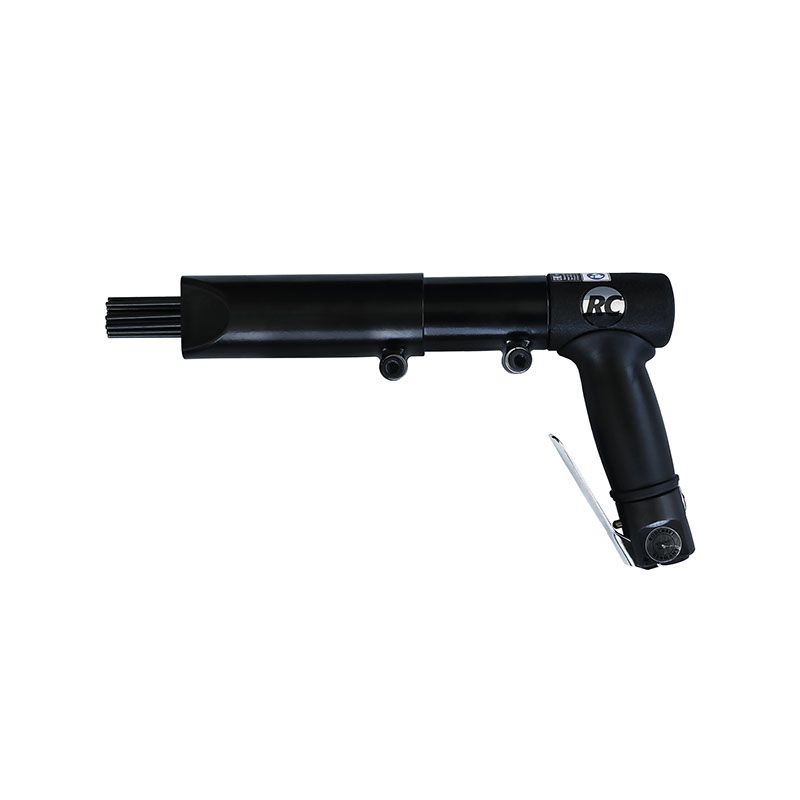

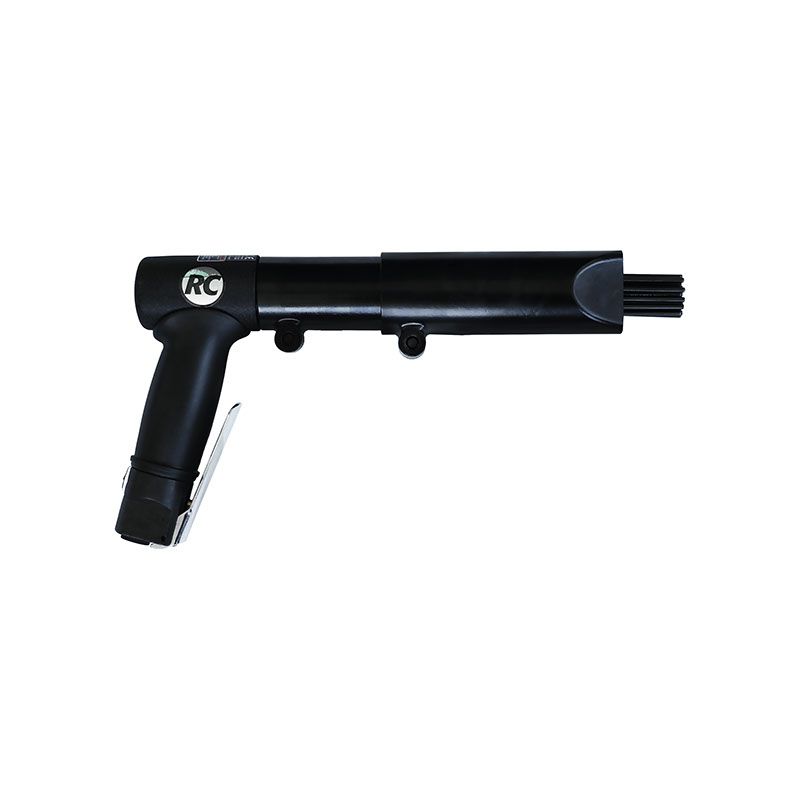

RC5625 - Pistol needle scaler
Technical Specifications
Design & Functions
Blow per minute
3000
Needle capacity
29x2, 19x1/8 (3)
Starting system
Lever
Noise & vibrations
Sound Power
105 dB(A)
Sound Pressure
94 dB(A)
Uncertainty vibration-K
3 m/s²
Vibration
17.7 m/s²
Size & Weight
Height (H)
175 mm
Length (L)
320 mm
Width (W)
47 mm
Weight
2.7 kg
Air information
Air inlet thread size (in)
1/4
Air inlet thread type
BSP
Max dynamic air working pressure
6.3 bar
Min hose diam (5 m hose length)
8 mm
Speed
Air consumption at free speed
1.4 l/s
RC5625
8951076004
Dimensions 38.5 x 19.5 x 7 cm
Weight 3.63 kg
