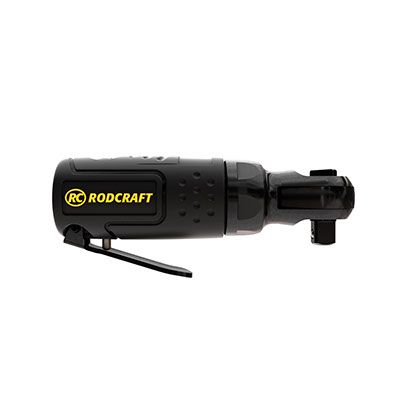

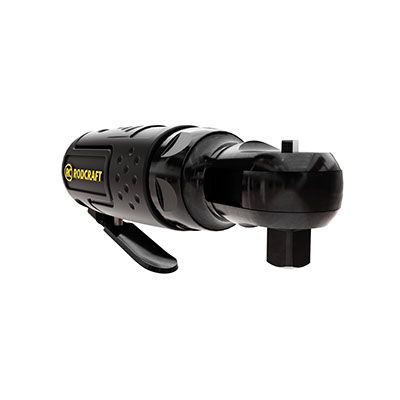

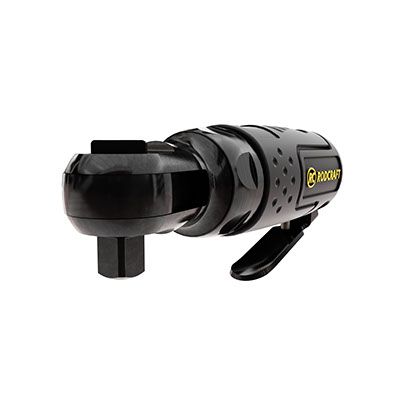

RC3201 / RC3202 / RC3203 Series - Mini ratchet wrench
Technical Specifications
Speed
Free Speed
300 rpm
Air consumption at free speed
1 l/s
Torque
Max torque reverse
50 Nm
Size & Weight
Height (H)
37 mm
Length (L)
135 mm
Width (W)
57 mm
Weight
0.46 kg
Design & Functions
Main Material type
Composite
Output drive size (in)
3/8
Output drive type
Square
Output retainer type
Ball detent
Starting system
Safety lever
Noise & vibrations
Sound Pressure
83 dB(A)
Uncertainty vibration-K
5.1 m/s²
Air information
Air inlet thread size (in)
1/4
Air inlet thread type
BSP
Max dynamic air working pressure
6.3 bar
Min hose diam (5 m hose length)
10 mm
RC3201
8951000433
Dimensions 24 x 8 x 7 cm
Weight 800 g
