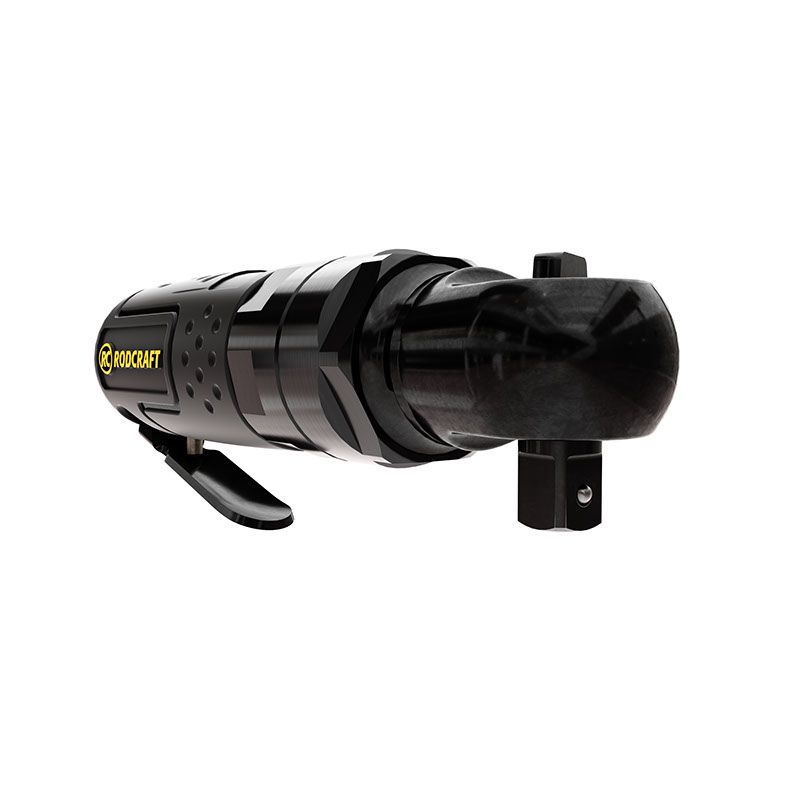

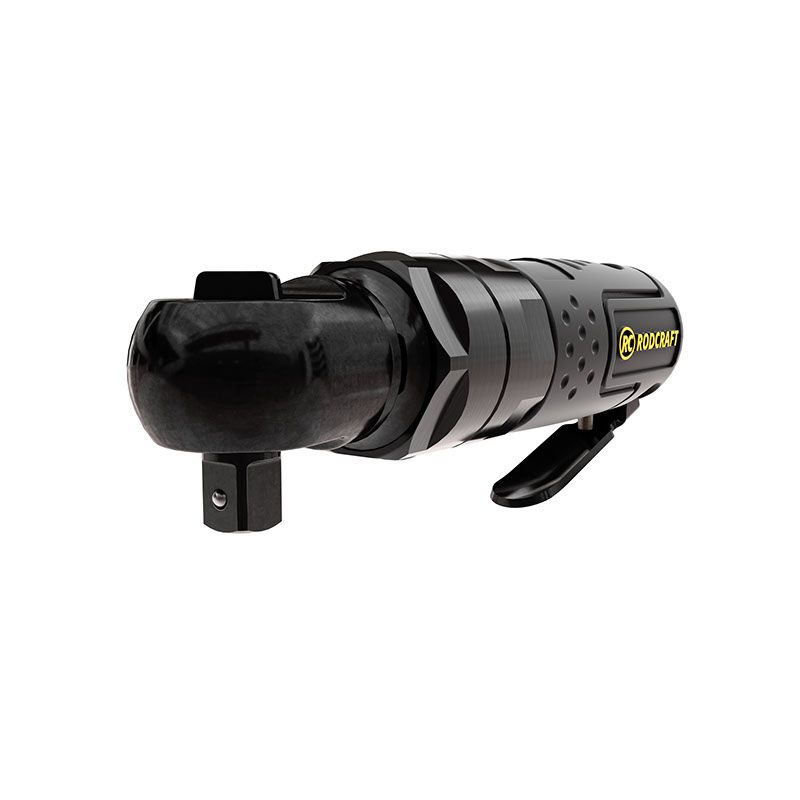

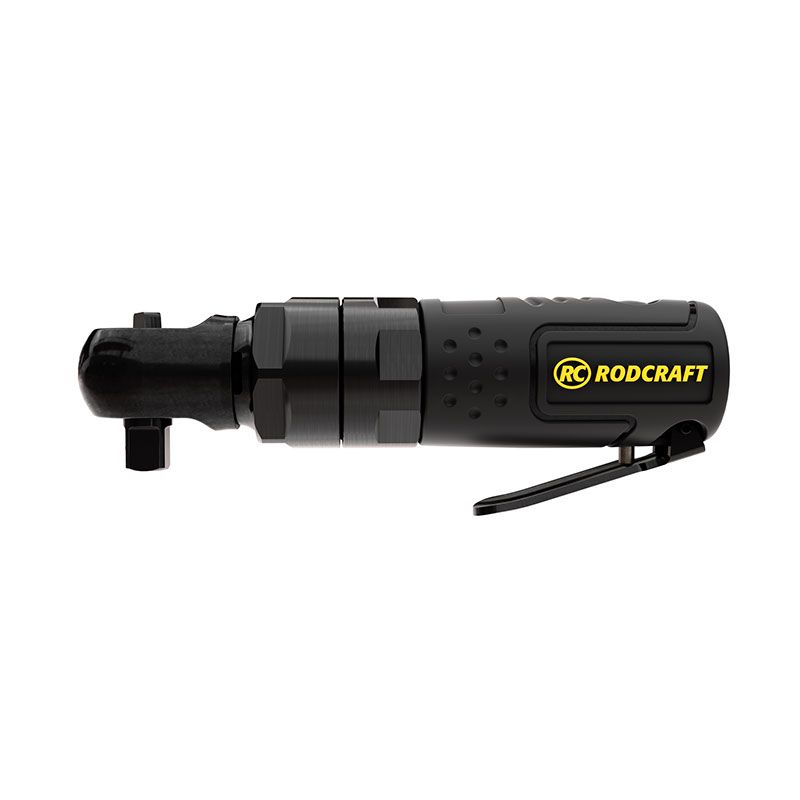

RC3201 / RC3202 / RC3203 Series - Mini ratchet wrench

The RC3201, RC3202 and RC3203 are the perfect and powerful mini air pressure ratchets 3/8" with and without multi-function drive or with impact mechanism

Country of origin is TW. Customs tariff is 84671190

Technical Specifications

Imperial Metric

Torque

Max torque reverse

50 Nm

Noise & vibrations

Sound Pressure

88 dB(A)

Uncertainty vibration-K

4.9 m/s²

Design & Functions

Main Material type

Composite

Output drive size (in)

3/8

Output drive type

Output retainer type

Ball detent

Starting system

Safety lever

Air information

Air inlet thread size (in)

1/4

Air inlet thread type

BSP

Max dynamic air working pressure

6.3 bar

Min hose diam (5 m hose length)

10 mm

Size & Weight

Height (H)

37 mm

Length (L)

158 mm

Width (W)

57 mm

Weight

0.65 kg

Speed

Free Speed

600 rpm

Air consumption at free speed

1 l/s

RC3203

8951000435

Mini impact ratchet wrench 3/8" - RC3203

Dimensions 24 x 8 x 7 cm

Weight 800 g

Benefits

Professional and fast work thanks to the powerful 223 watt air pressure motor

Lightweight tool with composite housing in ergonomic design

Fine speed regulation on the trigger

Available in 3 speed variants and 3 drive variants
