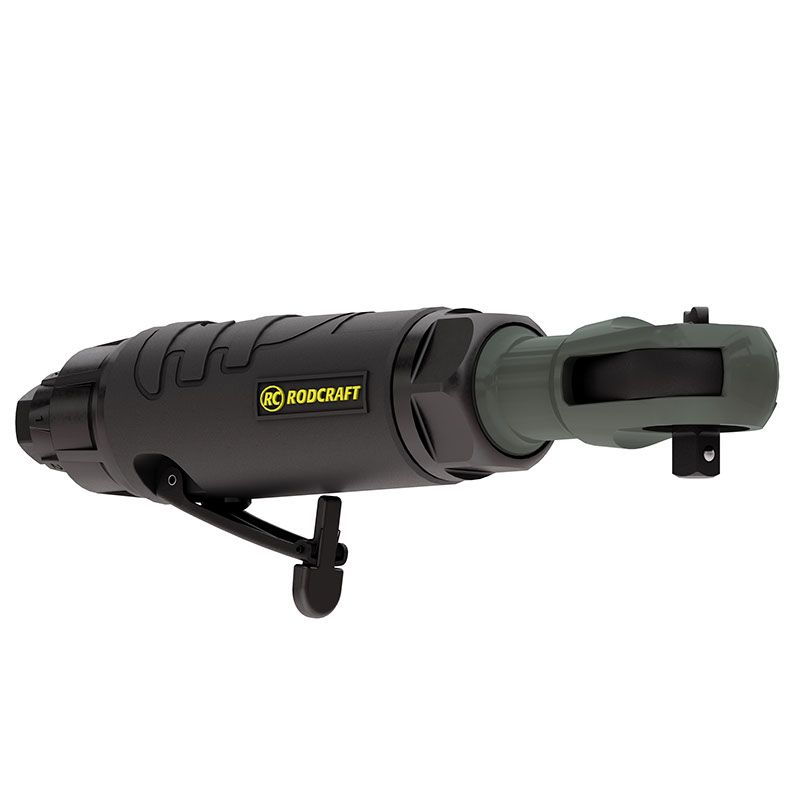

RC3068/RC3268/RC3278/RC3678 Series - Ratchet wrenches

The RC3068/RC3268/RC3278/RC3678 ratchet series is suitable for all applications and fast work thanks to its high speed and powerful torque. The design also ensures perfect handling, maneuverability and comfort, even in hard-to-reach places.

Country of origin is CN. Customs tariff is 84671190

Technical Specifications

Imperial Metric

Speed

Free Speed

190 rpm

Torque

Max working torque reverse

60 Nm

Max torque reverse

100 Nm

Size & Weight

Height (H)

80 mm

Length (L)

260 mm

Width (W)

48 mm

Weight

1.22 kg

Design & Functions

Main Material type

Aluminium, Composite over-sleeve

Output drive size (in)

3/8

Output drive type

Square

Output retainer type

Ball detent

Starting system

Safety lever

Noise & vibrations

Sound Pressure

89.2 dB(A)

Uncertainty vibration-K

5.1 m/s²

Air information

Air inlet thread size (in)

1/4

Air inlet thread type

BSP

Max dynamic air working pressure

6.3 bar

Min hose diam (5 m hose length)

10 mm

RC3278

8951000371

Ratchet 3/8" - RC3278

Dimensions 27.8 x 10 x 6 cm

Weight 1.42 kg

Benefits

The gearbox with 3 planetary gears, the closed head and the stable ball bearing drive ensure long service life with high torque

High working speed thanks to the powerful and fast motor

Comfortable handling and cold insulation thanks to the rubber coated "Beast" handle

Excellent handling with 4 power levels adjustable on a ring and a 360° swiveling air outlet
