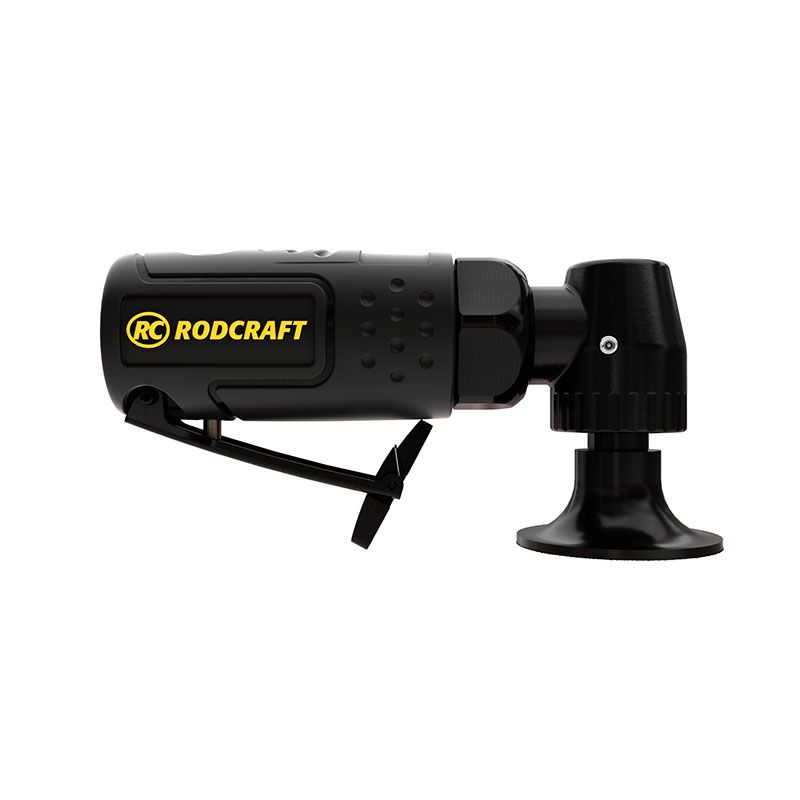

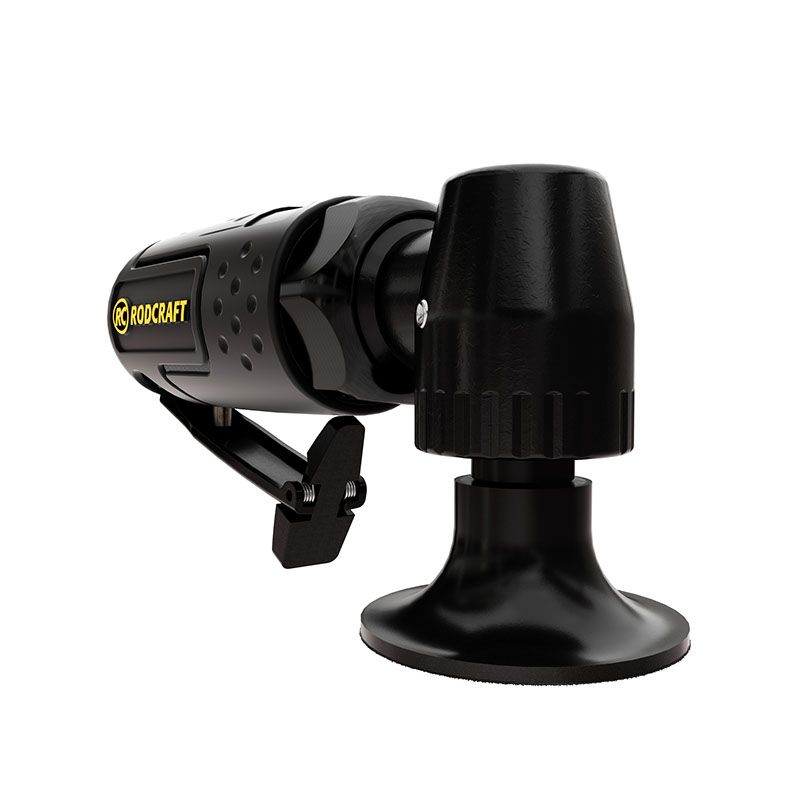

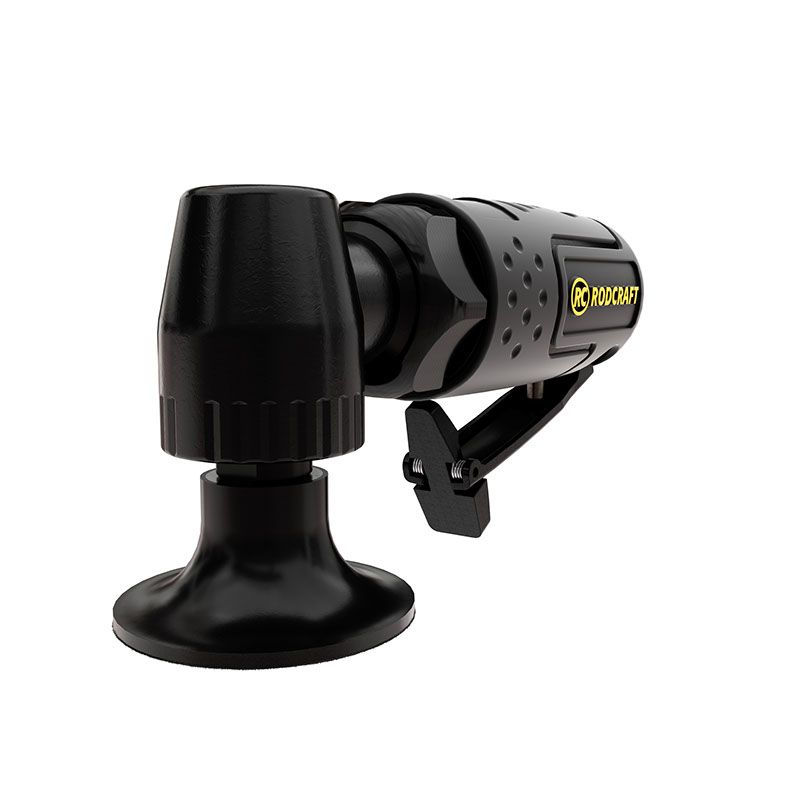

RC7601 - Mini rotary sander

The RC7601 mini compressed air rotary sander is handy, powerful and perfect for working efficiently in tight spaces

Country of origin is TW. Customs tariff is 84671110

Technical Specifications

Imperial Metric

Power & Battery

Max power

223 W

Design & Functions

Circular Abrasive Pad Size (in)

Circular Abrasive Pad Size (mm)

Exhaust

Rear

Main Material type

Composite

Pad holes number

Rotative inlet

Spindle lock

Starting system

Safety lever

Size & Weight

Height (H)

37 mm

Length (L)

134 mm

Width (W)

68 mm

Weight

0.41 kg

Speed

Free Speed

18000 rpm

Air consumption at free speed

1.1 l/s

Air information

Air inlet thread size (in)

1/4

Air inlet thread type

BSP

Max dynamic air working pressure

6.3 bar

Min hose diam (16 ft hose length)

0.38 in

Min hose diam (5 m hose length)

10 mm

Noise & vibrations

Sound Power

92 dB(A)

Sound Pressure

81 dB(A)

Uncertainty vibration-K

4 m/s²

RC7601

8951000431

Mini disc sander 50mm - RC7601

Package Dimensions 24.3 x 8 x 6.7 cm

Package Weight 708 g

Related DocumentsSafety Information, Manuals, Technical Drawings, etc.

Benefits

Professional and fast work thanks to the powerful 223 watt air pressure motor

Lightweight tool with composite housing in ergonomic design

Fine speed regulation on the trigger

For 50 mm sanding pads (Roloc)
