RC7602 - Mini polisher

The RC7602 mini compressed air polisher with optimized speed for polishing work is perfect for small areas, tight spots or for smart repair

Country of origin is TW. Customs tariff is 84671110

Technical Specifications

Imperial Metric

Power & Battery

Max power

223 W

Design & Functions

Circular Abrasive Pad Size (in)

Circular Abrasive Pad Size (mm)

Exhaust

Rear

Main Material type

Aluminium

Output Spindle Thread

5/16-24 UNF

Pad holes number

Rotative inlet

Spindle lock

Starting system

Safety lever

Size & Weight

Height (H)

37 mm

Length (L)

151 mm

Width (W)

68 mm

Weight

0.5 kg

Speed

Free Speed

4500 rpm

Air consumption at free speed

1 l/s

Air information

Air inlet thread size (in)

1/4

Air inlet thread type

BSP

Max dynamic air working pressure

6.3 bar

Min hose diam (16 ft hose length)

0.38 in

Min hose diam (5 m hose length)

10 mm

Noise & vibrations

Sound Power

91 dB(A)

Sound Pressure

80 dB(A)

Uncertainty vibration-K

3 m/s²

RC7602

8951000432

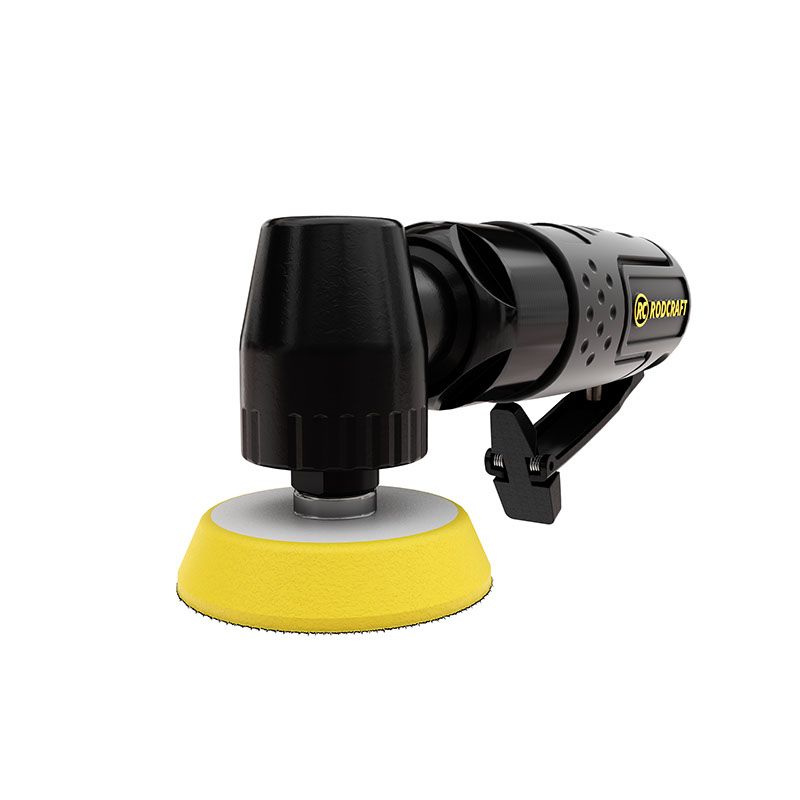

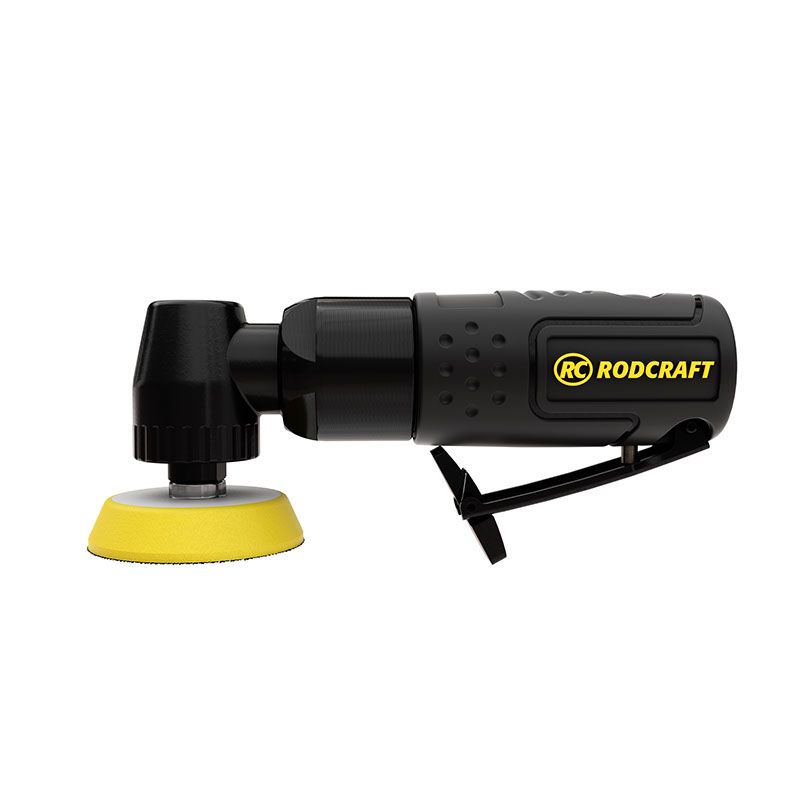

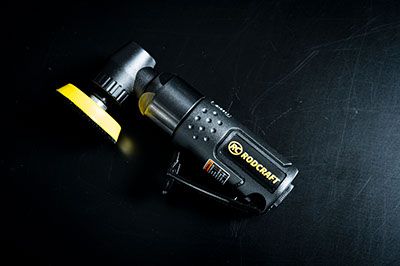

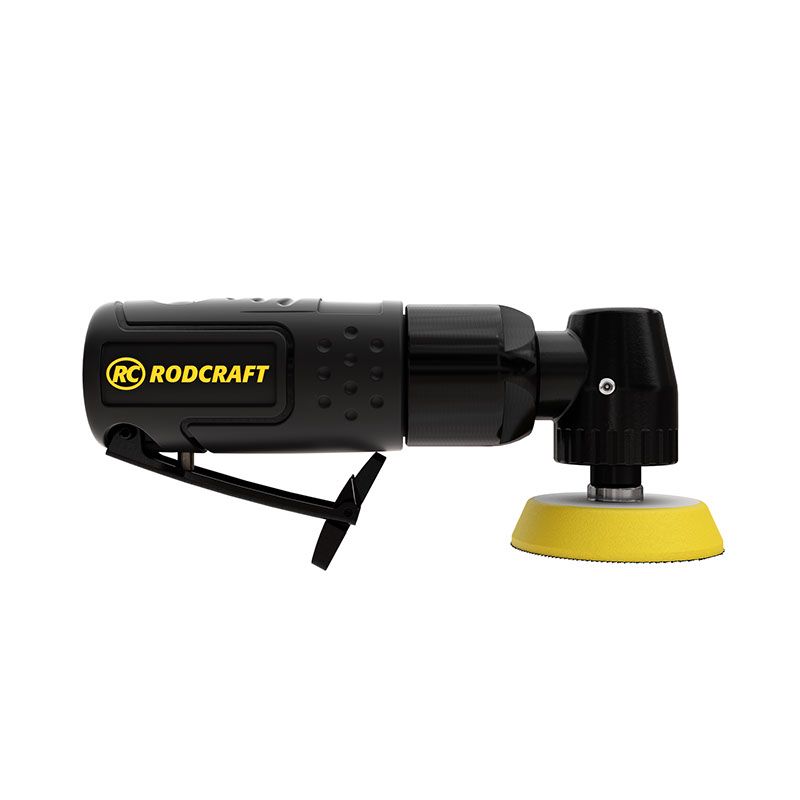

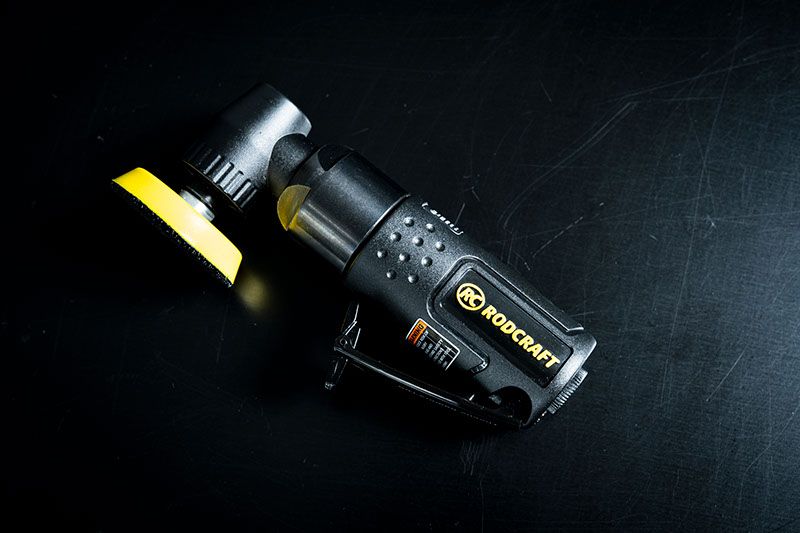

Mini polisher 50mm - RC7602

Package Dimensions 24 x 8 x 7 cm

Package Weight 800 g

Related DocumentsSafety Information, Manuals, Technical Drawings, etc.

Benefits

Professional and fast work thanks to the powerful 223 watt air pressure motor

Lightweight tool with composite housing in ergonomic design

Reduced speed up to 4,500 rpm for perfect polishing results and low heat generation

For 50 mm polishing pads (Velcro)

Accessories and Services

	Name	Item #
	RCA1000 MOTOR OIL 1L		RCA1000 MOTOR OIL 1L
	QUICK COUPLING ISO7,2MM SCREW F 3/8'' BSP		QUICK COUPLING ISO7,2MM SCREW F 3/8'' BSP
	QUICK COUPLING ISO7,2MM HOSE 9-10MM		QUICK COUPLING ISO7,2MM HOSE 9-10MM
	DOUBLE HOSE CONNECTOR 9MM		DOUBLE HOSE CONNECTOR 9MM
	F1G WATER SEPARATOR 852005		F1G WATER SEPARATOR 852005
	HOSE CONNECTOR 6MM SCREW M 1/4'' BSP		HOSE CONNECTOR 6MM SCREW M 1/4'' BSP
	HOSE CONNECTOR 9MM SCREW M 1/4'' BSP		HOSE CONNECTOR 9MM SCREW M 1/4'' BSP
	HOSE CONNECTOR 9MM SCREW M 3/8'' BSP		HOSE CONNECTOR 9MM SCREW M 3/8'' BSP
	Y QUICK COUPLING ISO7,2 SCREW F 3/8'' BSP		Y QUICK COUPLING ISO7,2 SCREW F 3/8'' BSP
	Y QUICK COUPLING ISO7,2 SCREW F 3/8'' BSP		Y QUICK COUPLING ISO7,2 SCREW F 3/8'' BSP

Showing 10 of 29
