RC7682 - Mini pistol orbital sander

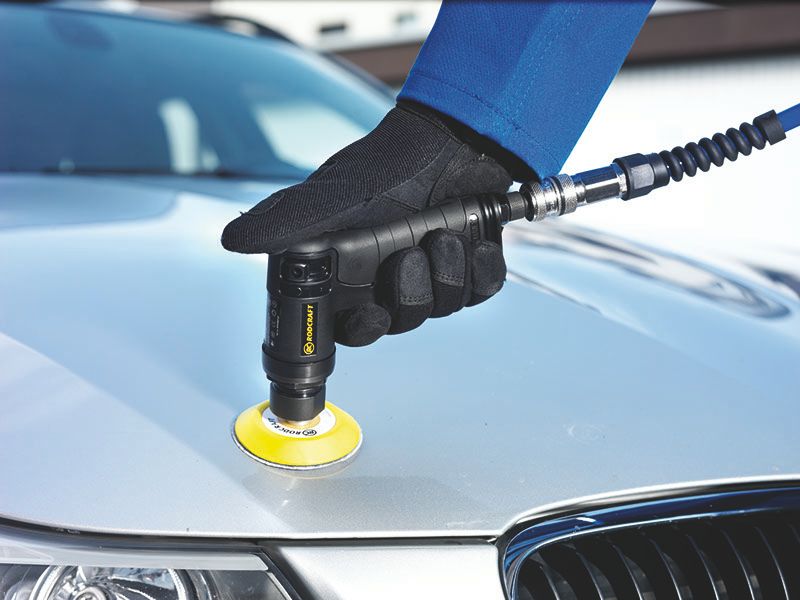

RC7682K product photo
The RC7682/7682K series mini orbital sanders with pistol shape are the ideal tools for surface preparation as well as for spot repairs Country of origin is TW. Customs tariff is 84671110

Technical Specifications

ImperialMetric
Air information
Air inlet thread size (in)
1/4
Air inlet thread type
BSP
Max dynamic air working pressure
6.3 bar
Min hose diam (5 m hose length)
8 mm
Noise & vibrations
Sound Power
90.6 dB(A)
Sound Pressure
79.6 dB(A)
Uncertainty vibration-K
3 m/s²
Vibration
8.9 m/s²
Size & Weight
Height (H)
125 mm
Length (L)
125 mm
Width (W)
42 mm
Weight
0.5 kg
Speed
Free Speed
15000 rpm
Air consumption at free speed
6.3 l/s
Overspeed shut-off
No
Design & Functions
Autobalancer
No
Circular Abrasive Pad Size (in)
2
Circular Abrasive Pad Size (mm)
50.75
Exhaust
Rear
Main Material type
Composite
Orbit Size (mm)
5
Orbit type
Random
Output Spindle Thread
5/8-24 UNF
Pad holes number
0
Pad type
Foam
Starting system
Trigger
Vacuum
Non vacuum
RC7682K product photo

RC7682K

8951000018

Orbital sander 75mm - RC7682K
dimention
Dimensions 40.4 x 28.8 x 10 cm
weight
Weight 2.02 kg

Benefits

Efficient work with 5 mm stroke and 15,000 rpm
Lightweight composite body only 124 mm in length and weighing only 124 mm, 0.5 kg with rubberized handle for ergonomic handling
Adjustable power regulator and progressive throttle for easier work
Mini pistol orbital sander for 50 mm and 75 mm H&L pads
PDF
Exploded View
1 - 999999
PDF
CE Certificate
1 - 999999
PDF
Safety instructions & safety data sheets
1 - 999999
PDF
Exploded View
1 - 999999
PDF
Operators manual
1 - 999999
