RC67 Series - Riveters

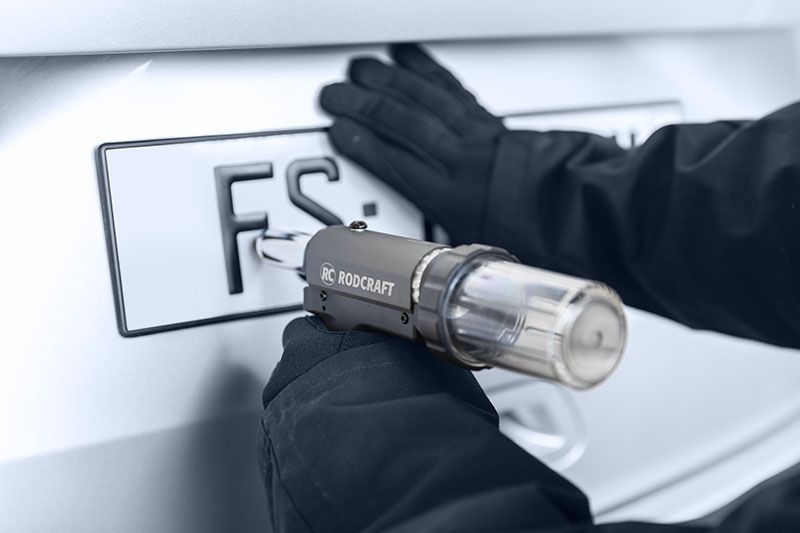

RC6738 Small riveter product photo
The RC6700/RC6738/RC6748 series rivet setters for blind rivets are suitable for blind and structural rivets of all common materials and sizes Country of origin is CN. Customs tariff is 84671900

Technical Specifications

ImperialMetric
Design & Functions
Main Material type
Aluminium, Composite over-sleeve
Max rivet size (mm)
5.0
Min rivet size (mm)
3.2
Mouthpiece delivered
3
Rivet type
Blind
Starting system
Trigger
Noise & vibrations
Sound Power
88.8 dB(A)
Sound Pressure
77.8 dB(A)
Uncertainty vibration-K
0.6 m/s²
Vibration
2.5 m/s²
Air information
Air consumption at load
4 l/s
Air inlet thread size (in)
1/4
Air inlet thread type
BSP
Max dynamic air working pressure
6.3 bar
Min hose diam (5 m hose length)
10 mm
Size & Weight
Height (H)
115 mm
Length (L)
277 mm
Width (W)
290 mm
Max stroke length
19 mm
Weight
1.7 kg
RC6738 Small riveter product photo

RC6738 Small riveter

8951000408

Riveter - RC6738
dimention
Dimensions 34 x 22.5 x 14 cm
weight
Weight 2.5 kg

Benefits

Exact setting forces from 8.8 to 21.0 kilonewtons depending on model for blind rivets or structural blind rivets (e.g. BULB) from 2.4 to 7.8 mm
Suitable for all common rivets such as aluminum, copper, steel and stainless steel, including automatic rivet mandrel extraction for simplified work in vertical position
The air outlet on the underside of the RC6738 and RC6748 models in honeycomb design ensures significant noise reduction
Cold-insulating composite handle and low-vibration operation with low recoil force for ergonomic and safe handling
