RC67 Series - Riveters

The RC6700/RC6738/RC6748 series rivet setters for blind rivets are suitable for blind and structural rivets of all common materials and sizes

Country of origin is CN. Customs tariff is 84671900

Technical Specifications

Imperial Metric

Design & Functions

Main Material type

Aluminium, Composite over-sleeve

Max rivet size (mm)

7.8

Min rivet size (mm)

4.8

Mouthpiece delivered

Rivet type

Blind

Starting system

Trigger

Noise & vibrations

Sound Power

88.8 dB(A)

Sound Pressure

77.8 dB(A)

Uncertainty vibration-K

0.6 m/s²

Vibration

2.5 m/s²

Air information

Air consumption at load

4.1 l/s

Air inlet thread size (in)

1/4

Air inlet thread type

BSP

Max dynamic air working pressure

6.3 bar

Min hose diam (5 m hose length)

10 mm

Size & Weight

Height (H)

130 mm

Length (L)

325 mm

Width (W)

35 mm

Max stroke length

27 mm

Weight

2.5 kg

RC6748

8951000409

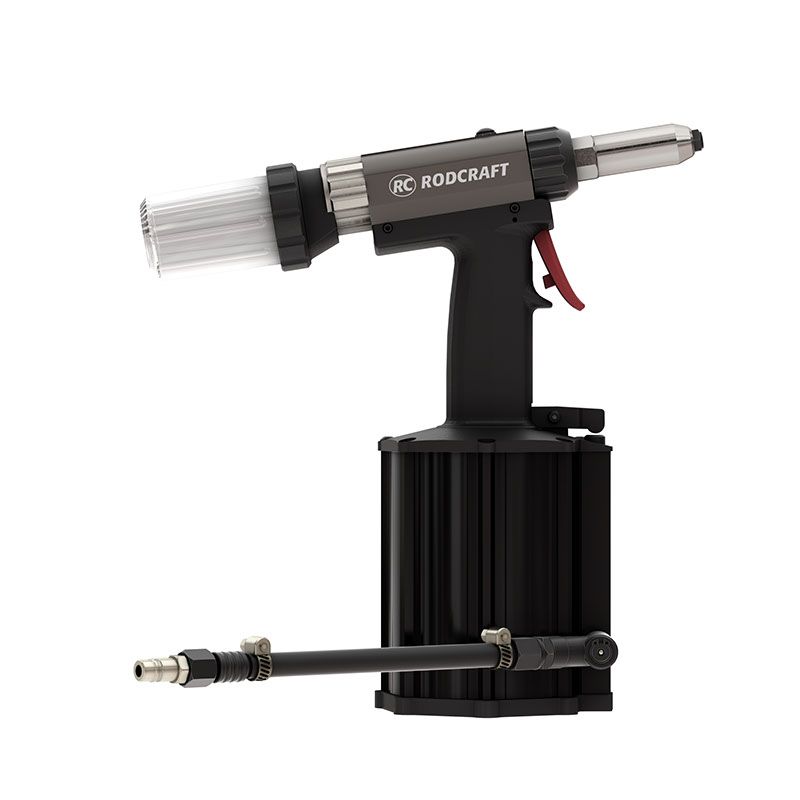

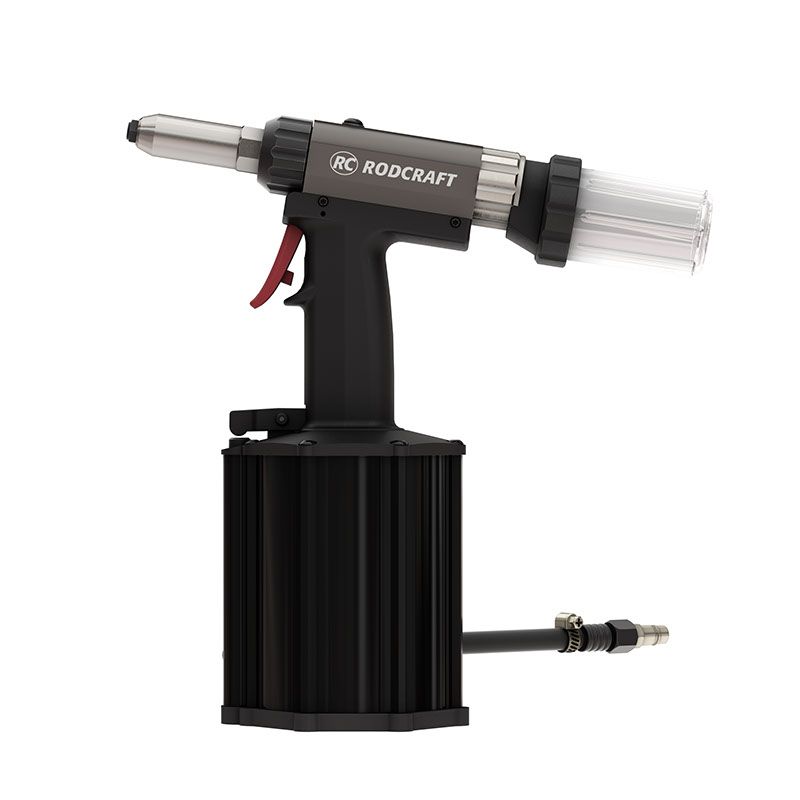

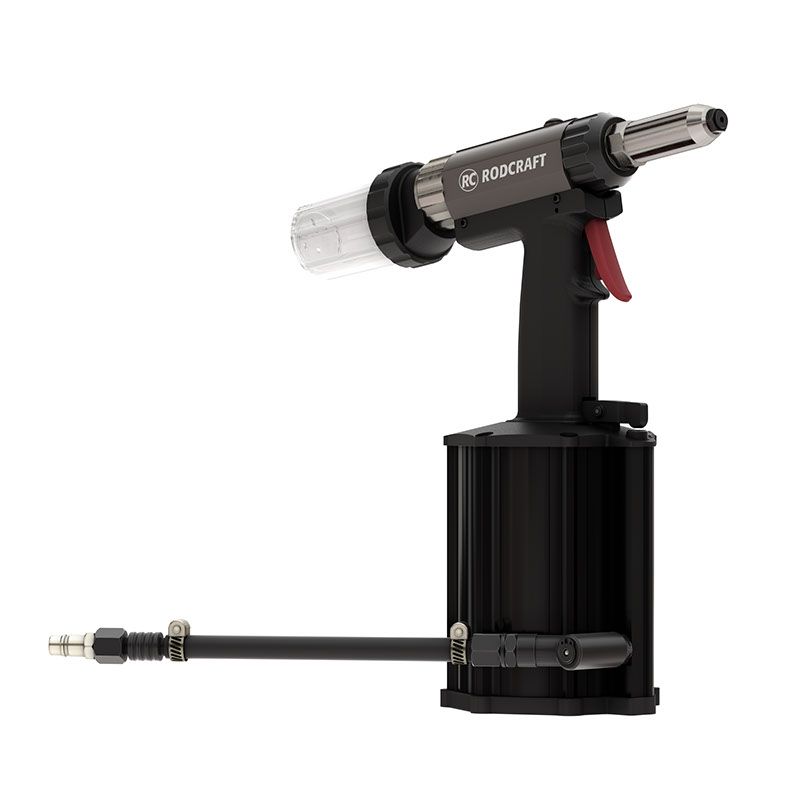

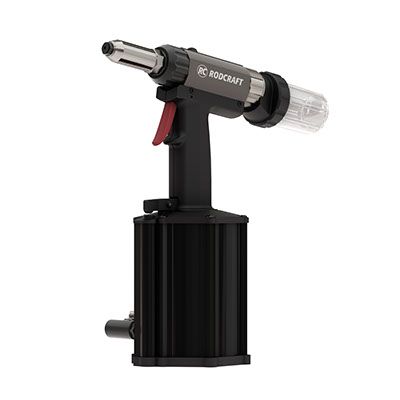

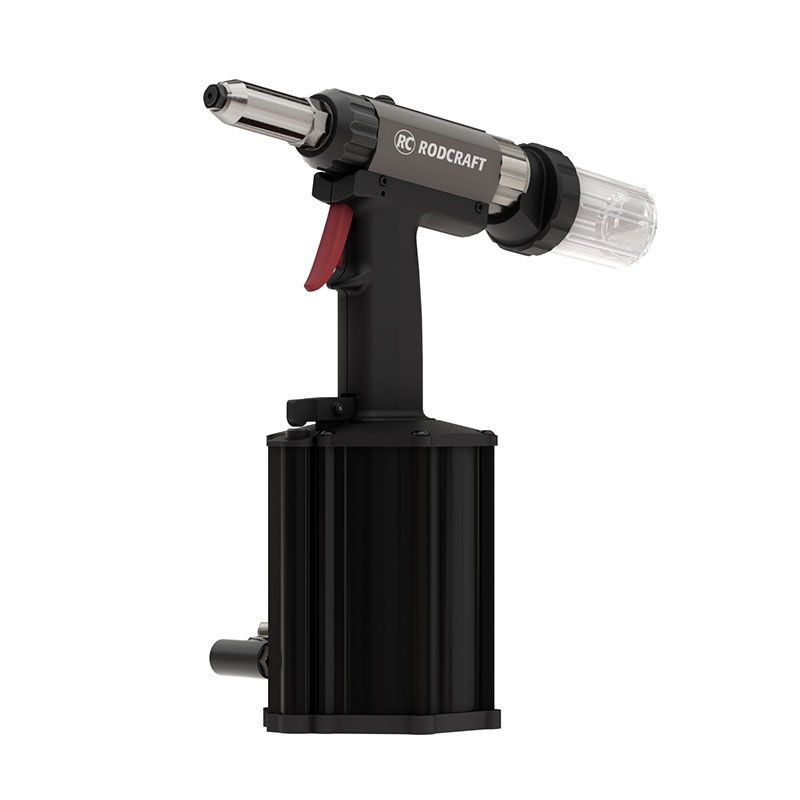

Riveter - RC6748

Dimensions 32.7 x 37.5 x 14.9 cm

Weight 3.58 kg

Benefits

Exact setting forces from 8.8 to 21.0 kilonewtons depending on model for blind rivets or structural blind rivets (e.g. BULB) from 2.4 to 7.8 mm

Suitable for all common rivets such as aluminum, copper, steel and stainless steel, including automatic rivet mandrel extraction for simplified work in vertical position

The air outlet on the underside of the RC6738 and RC6748 models in honeycomb design ensures significant noise reduction

Cold-insulating composite handle and low-vibration operation with low recoil force for ergonomic and safe handling
