RC67 Series - Riveters

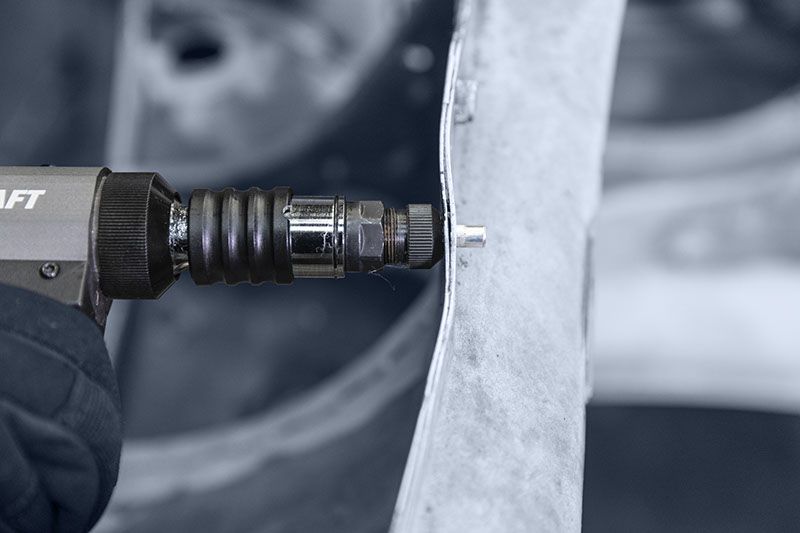

RC6758 product photo
The RC6700/RC6738/RC6748 series rivet setters for blind rivets are suitable for blind and structural rivets of all common materials and sizes Country of origin is CN. Customs tariff is 84671900

Technical Specifications

ImperialMetric
Design & Functions
Main Material type
Aluminium, Composite over-sleeve
Max rivet size (mm)
M12
Min rivet size (mm)
M3
Mouthpiece delivered
7
Rivet type
Insert
Starting system
Trigger
Noise & vibrations
Sound Power
88.8 dB(A)
Sound Pressure
77.8 dB(A)
Uncertainty vibration-K
0.6 m/s²
Vibration
2.5 m/s²
Air information
Air consumption at load
2.8 l/s
Air inlet thread size (in)
1/4
Air inlet thread type
BSP
Max dynamic air working pressure
6.3 bar
Min hose diam (5 m hose length)
10 mm
Size & Weight
Height (H)
115 mm
Length (L)
280 mm
Width (W)
280 mm
Max stroke length
7 mm
Weight
2.2 kg
RC6758 product photo

RC6758

8951000410

Riveter - RC6758
dimention
Dimensions 34.5 x 13.8 x 32.1 cm
weight
Weight 3.49 kg

Benefits

Exact setting forces from 8.8 to 21.0 kilonewtons depending on model for blind rivets or structural blind rivets (e.g. BULB) from 2.4 to 7.8 mm
Suitable for all common rivets such as aluminum, copper, steel and stainless steel, including automatic rivet mandrel extraction for simplified work in vertical position
The air outlet on the underside of the RC6738 and RC6748 models in honeycomb design ensures significant noise reduction
Cold-insulating composite handle and low-vibration operation with low recoil force for ergonomic and safe handling
